Think Big. Go Small. Eco-Smart Computing

Z370L2

8/9th Gen. Coffee Lake DP, 2HDMI 2LAN 10 USB,16x slot
Featured Highlights
Intel® Core™ i9/i7/i5/i3 processor 1151pin
  8/9th Gen. Coffee Lake Platform
  Low-voltage energy efficiency Eco-smart computing
Intel® Z370 Chipset, Supports RAID-5
  30 HSIO Lanes (20 x PCIe 3.0), 2 x NVMe, Optane
Intel® UHD 630 Graphics,4K/5K Resolution, HDR 10Bit color, 2 HDMI+DP
2 x DDR4 DIMM for up to 64GB Memory
PCIe x16
2 Intel® Gigabit LAN, 11ac WiFi+BT + M.2 WiFi
8 USB 3.0, 4 USB 2.0
6 x SATA-6Gb/s -RAID, M.2 NVMe
7.1 ALC892 Audio Sound
Power Supply: DC12V 5-12.5A/ATX input
OS Support: Linux, Windows 10, IOT
•  Applications: Set Top Box, Network Appliance, Digital Signage, Surveillance, AV Player, IP/PBX, IoT/Edge System, etc.
  New Generation Model Available:  Z590L2
SKU: Z370L2
Product specifications
Processor
• Intel® 8th/9th Generation Coffee Lake processor
• LGA1151 socket series with 35W, 65W to 95W TDP
• Intel® Core™ i9 processor 9900K 8C/16T series 16M Cache
• Intel® Core™ i7 processor 8700, 8700T series 12M Cache
• Intel® Core™ i5 processor 8600,8400, 8400T series 9M Cache
• Intel® Core™ i3 processor 8300, 8100, 8100T series 6M Cache
Chipset
• Intel® Z370 Express
• Supports SATA RAID-5
• 30 High Performance Lanes (20 x PCIe 3.0)
• 2 PCIe x4 NVMe
• Supports Intel® Optane™ Memory
Graphics
• Intel® UHD 630 Graphics,4K/5K Resolution, HDR 10Bit color
• Support 3 Graphics ports
• 2 x HDMI® , supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI® 1.4 version and HDCP 2.2
• 1 x DP 4K 60Hz Graphics Port
Memory
• 2 x DDR4 DIMM
• 2666/2400/2133MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 64GB
Network
• 1 x Intel® i219V Gigabit (10/100/1000 Mb/s) LAN
• 1 x Intel® i211AT Gigabit (10/100/1000 Mb/s) LAN
• 802.11 ac/n Dual-Band Wi-Fi (2.4GHz / 5.8GHz), Bluetooth 4.0
Expansion Slot
• 1 x PCI Express 3.0 x16 slot
• 1 x M.2 socket (configured with 11ac WiFi + Bluetooth module)
• 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe x4 NVMe)
Storage
• 6 x SATA 6Gb/s supports RAID 0, 1, 5, 10
• 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe x4 NVMe)
Audio
• Realtek® ALC892 8-channel (7.1)
• 3 x 3.5mm analog stereo audio jacks
Back Panel I/O
• 6 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 2 x HDMI® ports
• 1 x DP port
• 2 x LAN ports
• 3 x 3.5mm audio jacks
• 1 x DC Jack In port
• 1 x PS/2 Port
Internal I/O
• 2 x USB 3.0 Headers
• 2 x USB 2.0 Headers
Function
• 1 x TPM Header

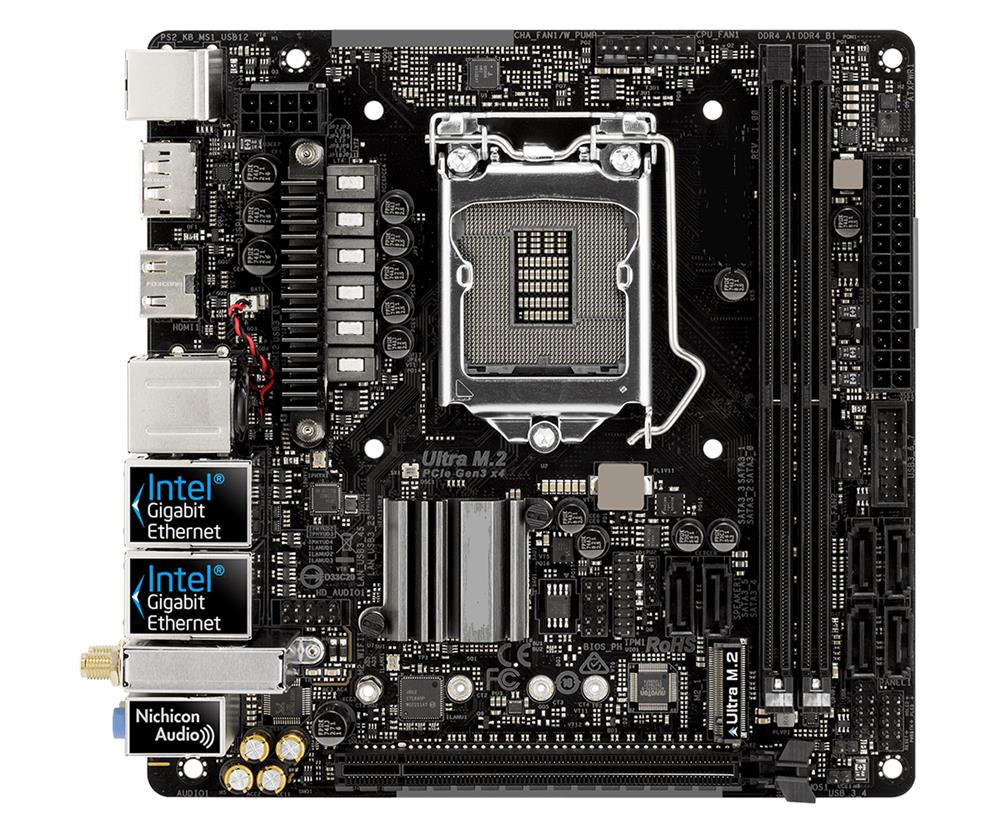

Systemboard
Small Form Factor

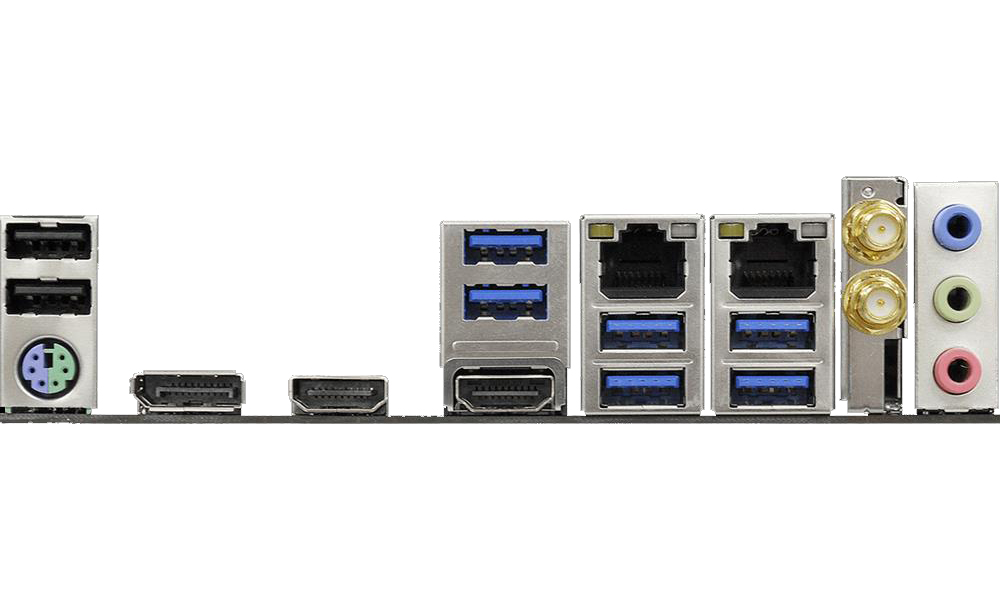

Back I/O

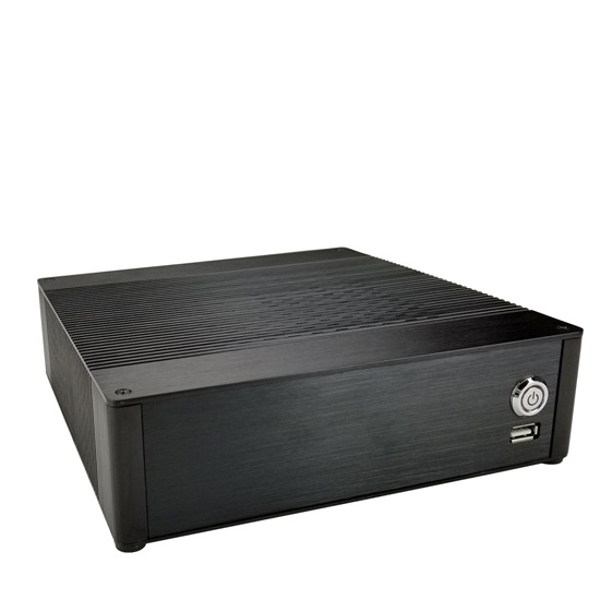

Chassis
• 300B Series Aluminum Mini Chassis
• Dimensions:300 Case: 8.1(L) x 8.1(W) x 2.2(H) inch
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging)
• Color: Black as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
• Optional: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5"
• Optional: 500B 3.5" H w/LP Slot 500A DVD Bay +LP Slot 500D with 5.25" Bay 500F Dust Filter 500C LCD Control
• Optional: 1750C Aluminum Form Factor
Power Supply
• Power: DC12V 5-12.5A Power Adapter (UL/CE/FCC Certified)
• Optional 100-240V ATX AC Power connector input
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Linux, Windows 10, IOT
Application
• Set Top Box, Network Appliance, Digital Signage, Surveillance, AV Player, IP/PBX, IoT/Edge System, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
