B8500L6+2SFP

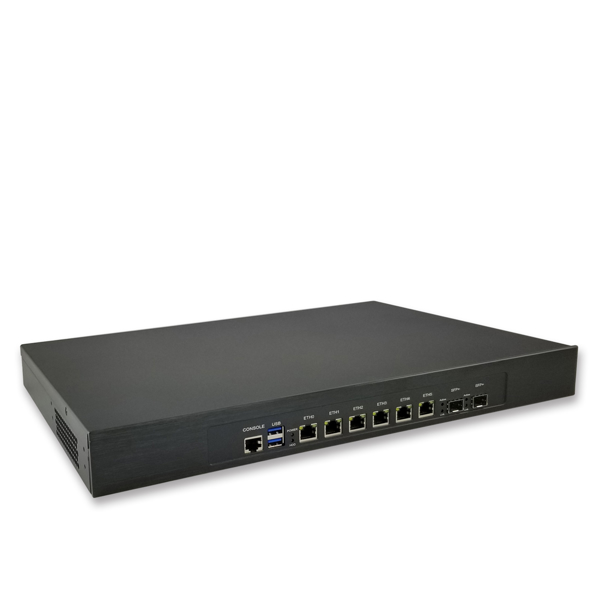

Haswell Socket-S, 6 LAN 2 SFP+, 4 SATA+mSATA+MiniPCIe, VGA+COM+PCIe 2.0 x1
Featured Highlights
Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processor
Intel® B85 Chhipset for Haswell Family
2 DDR3L SO-DIMM for up to 32GB Memory
4 SATA-6Gb/s, mSATA-6Gb/s
PCIe 2.0 x1, MiniPCIe WiFi+BT/4G-LTE with SIM
6 Intel® Gigabit LAN , SFP+ 10GbE LAN
2 USB 3.0, 2 USB 2.0, RJ45 COM
Mini-1U with 200W AC Power or DC12V 120W Power Adapter
OS Support: Windows 7, Windows 8, Windows 10, IoT, Linux
Applications: Network Appliance, IP/PBX, IoT/Edge System, etc.

SKU: B8500L6+2SFP
Product specifications
Processor

• Intel® 4th Generation Haswell Processor
• LGA1150 Socket-S series with 35W to 84W TDP

Chipset
• Intel® B85 Chipset
• Supports Intel® Small Business Advantage
Graphics

• Intel® HD 4600/5000 Series Graphics
• 1 x VGA header

Memory
• 2 x DDR3 SO-DIMM
• 1600/1333MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 32GB
Network

• 6 x Intel® 82574L Gigabit (10/100/1000 Mb/s) LAN
• 2 x Intel® 82599SE 10Gigabit (10/100/1000/10000 Mb/s) SFP+
• 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair)
• 1 x SIM slot (for 3G/4G-LTE option)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x PCI Express 2.0 x1 slot
• 1 x MiniPCIe full size slot (for mSATA)
• 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Module with SIM pair)

Storage

• 4 x SATA 6Gb/s
• 1 x mSATA 6Gb/s via MiniPCIe full size slot

Audio

• Optional by USB module

Internal I/O

• 2 x USB 2.0 headers
• 1 x VGA header
• 1 x RS232 Serial COM header
• 1 x CPU Fan header
• 2 x System Fan headers
• 4 x SATA ports
• 4 x SATA Power Connectors
• 1 x ATX Power-in Connector

Other I/O

• 2 x USB 3.0 ports (Front)
• 1 x RJ45 Serial Console port (Front)
• 6 x LAN ports (Front)
• 2 x SFP+ ports (Front)

System BIOS
• Watchdog supported

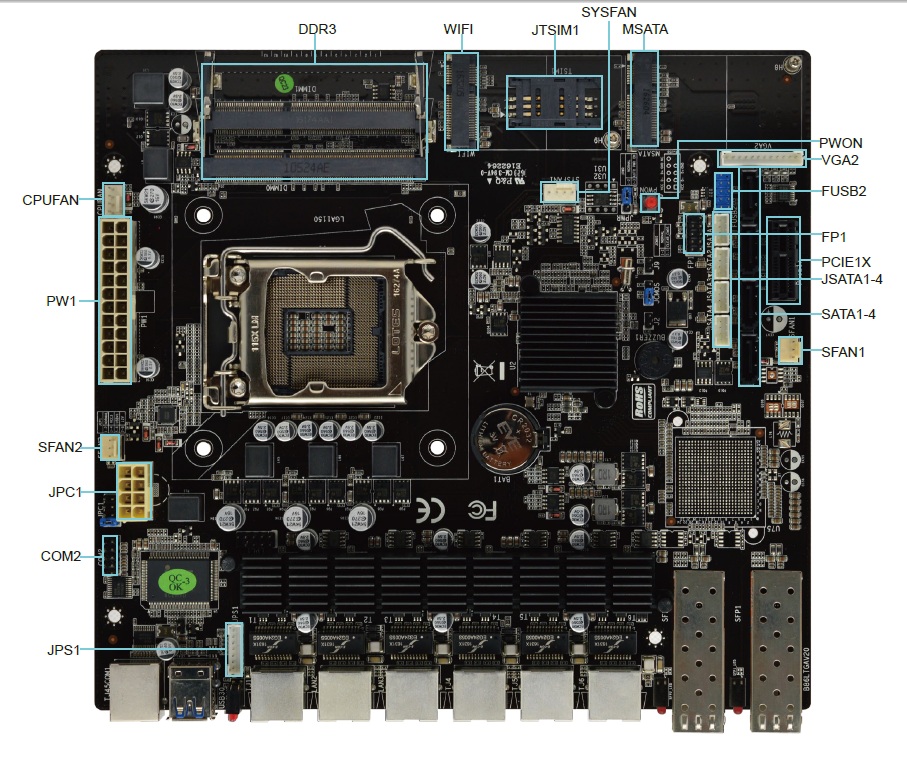

Systemboard
Small Form Factor

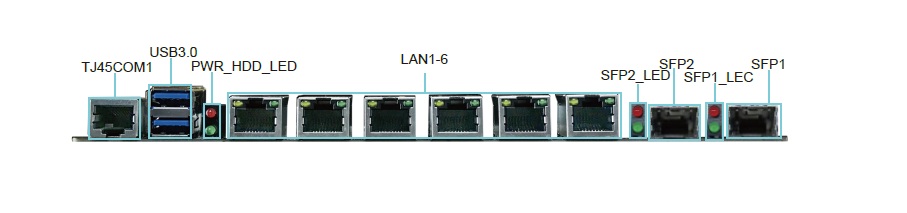

Back I/O
Chassis

1U-1000U Series Aluminum Chassis
• Dimensions: 12.9"(L) x 17.2"(W) x 1.75"(H)inch, Weight: 9 lb Net, 30 lb. Gross
• Low-profile slot option
• 2 x 2.5" drive bay or Internal 1 x 3.5" or 2 x 2.5" drive bays
• Color: Black (Custom color is available for special order)
• Option: 1750F Fanless with slot

Power Supply

• Power: DC12V 120W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional 90V-240V 220W or higher wattage AC Power Supply
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support
• Windows XP, Windows 7, Windows 8, Windows 10, IoT, Linux
Application

•  Network Appliance, Digital Signage, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.

Environment

• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
