Processor
• Dual Intel® Xeon® 6700E-series, 6500P-series and 6700P-series processors, TDP up to 350W
Memory
• 32 DDR5 DIMM slots, 8 channels per CPU (2DPC),RDIMM/RDIMM-3DS/MRDIMM • Max. Frequency:RDIMM: 6400MT/s (1DPC), 5200MT/s (2DPC),MRDIMM: 8000MT/s (only support 1DPC) • Max. Capacity per DIMM: 256GB (RDIMM), 64GB (MRDIMM)
|
Storage
• 24 Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays (6 from CPU0, 6 from CPU1) • 2 Rear hot-swap E1.S 9.5mm PCIe 5.0 x4 NVMe drive bays (CPU1) • 2 2280/22110 PCIe 5.0 x2 NVMe M.2 ports (CPU0) • NVMe RAID 0/1/5/10 support (Intel® VROC RAID key required)
Expansion Slot
• 2 PCIe 5.0 x16 FHFL double wide slots support max 400W PCIe card (1 from CPU0, 1 from CPU1) • 2 PCIe 5.0 x16 FHFL single wide slots (1 from CPU0, 1 from CPU1) • 2 PCIe 5.0 x16 FHHL single wide slots (1 from CPU0, 1 from CPU1)
|
Network
• 1 PCIe 5.0 x16 OCP3 NIC mezzanine slot (CPU0, NCSI supported)
Management
• 1 1000Base-T Dedicated Server Management port • ASPEED AST2600 with AMI MegaRAC based firmware • supporting IPMI 2.0 and DMTF Redfish API • Dual BIOS and dual BMC • eMMC for local BMC storage media
|
Back Panel I/O
• 2 Hot-swap E1.S 9.5mm drive bays • 1 1000Base-T Dedicated Server Management port • 1 COM USB Type A port • 1 USB 2.0 Type-A port • 1 Mini Display port • 1 Power LED (Green) button • 1 UID LED (Blue) button • 1 Status LEDs: Green/Red
Power Supply
• 1+1 Redundant 2000W CRPS 80 PLUS Titanium
|
Other I/O
• 8 or 24 Hot-swap 2.5" U.2 drive bays(Front) • 1 USB 3.0 Type-A port(Front) • 1 USB 2.0 Type-A port(Front) • 1 System Power LED button(Front) • 1 UID LED button(Front) • 1 Reset button(Front) • 4 Status LEDs: Fault/LAN/M.2(Front)

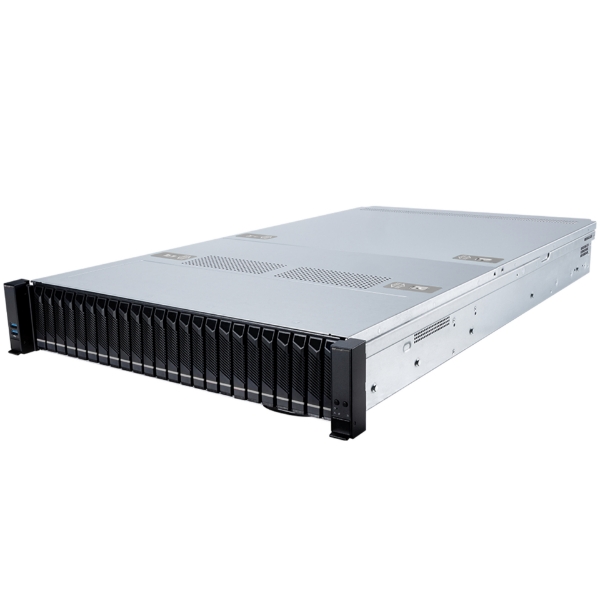

Chassis
2U 438mm (17.2") Wx 87mm (3.4") Hx 770mm (30.3")D
|
Environment
• System Operating Temperature: 0°C ~ 35°C • Non-operating Temperature: -20°C ~ 70°C • Non-operating Relative Humidity: 5% to 85% (non-condensing)
OS Support
• Windows Server, Linux, FreeBSD, VMware
|
Applications
• Cloud Computing Service,Content Delivery Network,Network Function Virtualization
|
