Processor
• AMD EPYC™ 9005 series Processor
Front Panel
• 2×USB3.0 • 1×Optional VGA
|
Memory
• 32 × DDR5 slots (RDIMM)，16-channel (8-channel per CPU), up to 5600MHz, support RDIMM/3DS RDIMM • Up to 8TB ECC
Storage
• Support 8 / 12 x 3.5” or 24 x 2.5” U.2 SSD/HDDs • Support 4 x U.2 NVMe SSD, 2 x M.2-2280/22110 PCIe 4.0 4x / SATA SSD
|
GPU
• Up to 8 NVIDIA® Dual-Slot RTX Pro 6000/5000/4500/4000, A100, H100, H100NVL, H200NVL, A800, H800 GPU Cards via PCIe 5.0 x16 Slots
Expansion Slot
• Up to 11 x standard expansion slots • Up to 8 × FHFL GPU Card • Support 1 x PCIe 5.0 16x + 2 × PCIe 4.0 8x (inaddition to 8 GPU)
|
Network
• Support 1×OCP3.0 expansion slot standard with PCIe 5.0 8x (Optional 16x) 2 - 4 Port 1G/10GbE LAN module • LAN module options: 4×1GbE / 2×10Gb SFP+ / 4×10Gb SFP+/ 2×25Gb SFP28 • Support NCSI
I/O
• 1 × VGA • 1 × COM • 2 × USB3.0 • 1 × IPMI RJ45 • 1 × Standard OCP NIC 3.0 slot
|
Internal I/O
• 2× USB 3.0 header、2×USB 2.0 header、1× USB 2.0 Type A • 1 × VROC Key header • 12 × SATA 3.0（3 × SFF-8643）, support RAID 0,1,5,10 • 3 × MCIO（PCIe 5.0x8），support 6 × NVMe（PCIe 5.0x4） • 2 × M.2 , PCIe 4.0 x4 , 2280 & 22110 • 12×4pin FAN • 1× VGA header for FP • 1×SPI TPM 2.0

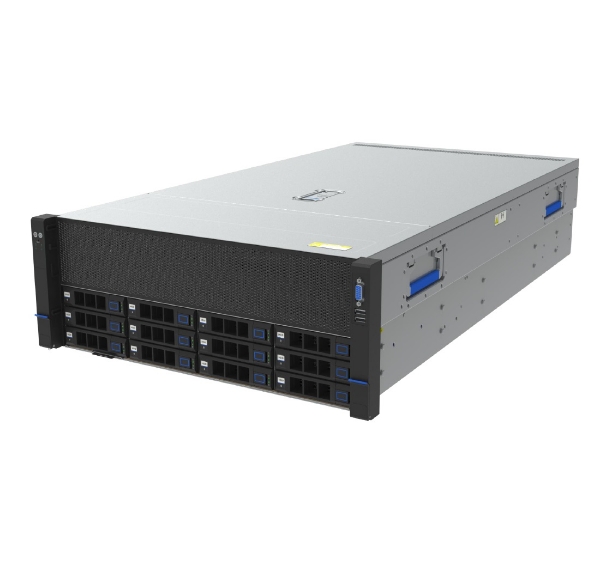

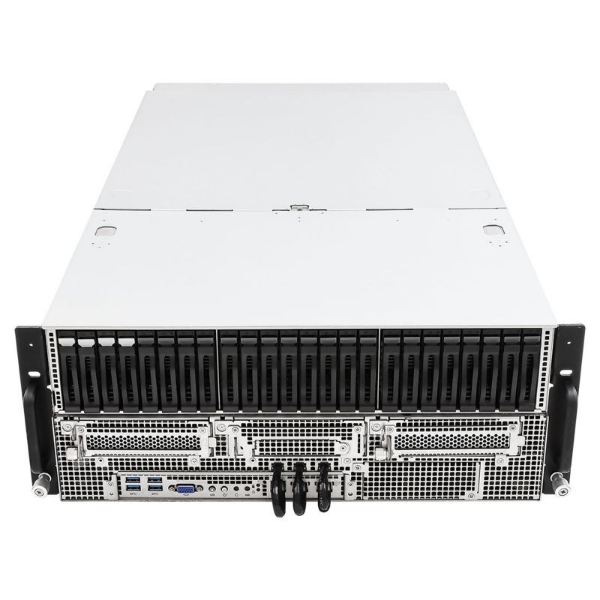

Chassis
4U 19" Standard Rackmount
• 2.5” Configuration: W 448mm × H 175mm × D 772mm （792mm with ear bezel） • 3.5” Configuration: W 448mm × H 175mm × D 822mm （842mm with ear bezel）
|
Power Supply
• 4×Standard CRPS Power Modules，hot-swappable, support 2+2/ 3+1/ 1+1 redundancy • 1600W/2000W/2400W/2700W Platinum or Titanium power supply module option
OS Support
Windows Server, Linux
|
Application
• GPU for AI, Deep Learning, HPC.
Environment
• Operating Temperature: +10 to +35 C • Non-operating Temperature: -40 to +70 C • Operating Relative Humidity: 10% to 80% (non-condensing) • Non-operating Relative Humidity: 10% to 93% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, UL, RoHS Compliance
|
