Think Big. Go Small. Eco-Smart Computing

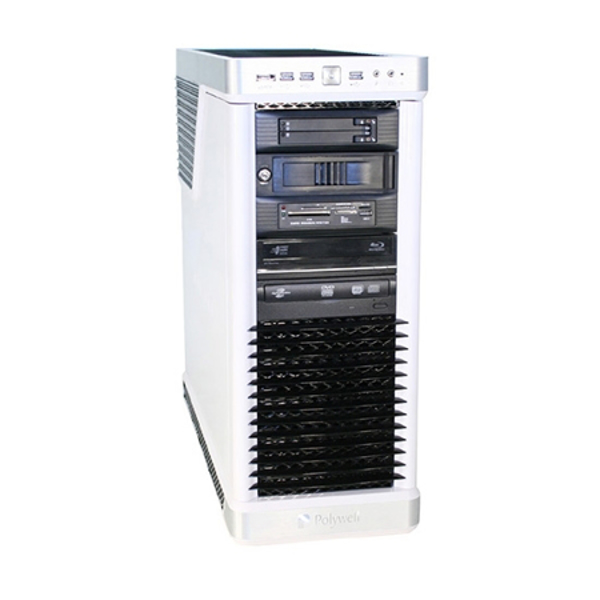

Z370E3

8th Generation Core i7/i5, 3 PCIe x16 Slots 4DDR4 upto 64G RAM, 2M.2 NVMe Fast SSD
Featured Highlights
•  Intel® 8th Generation Coffee Lake Processor LGA1151
Intel®Z370
Dimensions:
  210 (W) x 510 (H) x 549 (D) mm, 8.26 (W) x 20 (H) x 21.6 (D) inch
4 x DDR4 DIMM, upto 64GB Memory
Supports Intel® UHD Graphics Built-in Visuals
7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
3 x PCI Express 3.0 x16 Slots
6 x SATA
5 x Audio Jack(s)
Power Supply: DC12V/ATX input
OS support: Microsoft® Windows® 10 64-bit
Applications: High Performance PC for Gaming, Home PC, Small Office, Business Computing.

SKU: Z370E3
Product specifications
Processor
• Intel® 8th Generation Coffee Lake processor
• LGA1151 socket series with 65W to 95W TDP
• Intel® Core™ i7 processor 8700 series 12M Cache
• Intel® Core™ i5 processor 8600,8400 series 9M Cache
• Intel® Core™ i3 processor 8300, 8100 series 6M Cache
Chipset
• Intel® Z370
Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• The maximum memory frequency supported varies by processor.
Graphics
• Integrated Graphics Processor- Intel® HD Graphics support
• HDMI® /DVI-D/DisplayPort ports
• Supports HDMI® 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
• Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
• Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB
• Supports up to 3 displays simultaneously DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
• Multi-GPU Support
• Supports NVIDIA® 2-Way SLI™ Technology
• Supports AMD 3-Way CrossFireX™ Technology
Expansion Slot
• 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *
• 1 x PCIe 3.0/2.0 x16 (max at x4 mode)
• 4 x PCIe 3.0/2.0 x1
• For 2 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_2 slot, enable this card under BIOS settings.
• For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
Storage
• 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)*1
• 1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)*2
• 6 x SATA 6Gb/s port(s), gray
• Support Raid 0, 1, 5, 10
• Intel® Rapid Storage Technology supports
• Supports Intel® Smart Response Technology
• Intel® Optane™ Memory Ready
LAN
• Intel® I219V, 1 x Gigabit LAN Controller(s)
Audio
• Realtek® S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Front panel audio connector (AAFP)
• Supports up to 32-Bit/192kHz playback *3
USB
• USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A, Support 3A power output)
• USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at back panel, , USB Type-CTM, Support 3A power output)
• Intel® Z370 Chipset : 6 x USB 3.1 Gen 1 port(s) (2 at back panel, , 4 at mid-board) I
• Intel® Z370 Chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
Back I/O
• 1 x DVI-D
• 1 x DisplayPort
• 1 x HDMI®
• 1 x LAN (RJ45) port(s)
• 1 x USB 3.1 Gen 2 Type-A
• 1 x USB 3.1 Gen 2 USB Type-CTM
• 2 x USB 3.1 Gen 1
• 2 x USB 2.0
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
Motherboard
Small Form Factor
Back I/O
Internal I/O
• 1 x Aura RGB Strip Header
• 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
• 6 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)
• 2 x Chassis Fan connector(s) (2 x 4 -pin)
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x EZ XMP switch
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x MemOK! button(s)
• 1 x CPU OV
• 1 x Power-on button(s)
• 1 x Clear CMOS jumper(s)
• 1 x 14-1 pin TPM connector
• 1 x COM port header
• 1 x T_Sensor Connector
• 1 x AIO PUMP Header
• 2 x 3D Mount screw port(s)
• 1 x M.2 Fan Header
BIOS
• 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
• ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,
• F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
Manageability
• WfM 2.0, DMI 3.0, WOL by PME, PXE
Chassis
• TS900W 9-Bay ATX Tower
• Drive Bay: 9 External 5.25" (convertible to 15 x 3.5" Swap bays)
• Slot: 7 (supports double slot add-on card)
• Cooling: Quiet and Cool 120mm Fans Cooling
• Dimension: 210 (W) x 510 (H) x 549 (D) mm, 8.26 (W) x 20 (H) x 21.6 (D) inch
• 500W, 600W, 700W, 850W, 900W, 1000W, 1250W or 1500W AC Power Supply 100-240V Switchable, FCC, CE, UR Certified
• 80 Plus High Efficiency Active PFC with 140mm Quiet Fan
OS Support
• Windows 10 64-bit
• Dual Boot and Multi-OS Boot Configurations are available, contact our system specialist for detail.
*
*
*
