Think Big. Go Small. Eco-Smart Computing

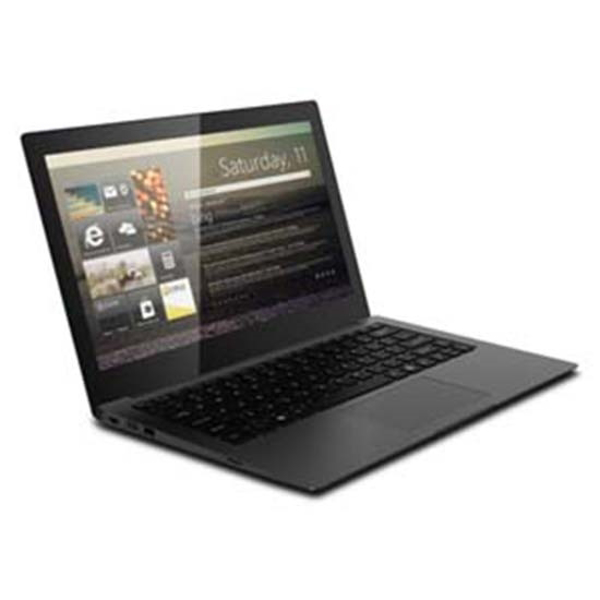

UltraNote 538i7G

Intel® HD 620 Series Graphics, 3840x2160 4K Panel Up to 16G Memory, M.2 SSD + 2.5" HD

[] 0.7" slim, 1.4kg light weight
[] Intel® Core™ i7 Mobile Processor
[] Supports DDR4 2400 SODIMM up to 16 GB
[] 15.6" 4K IPS Display (3840x2160)
[] Support M.2 SSD plus 2.5-inch SATA HDD/SSD
[] Integrated 802.11ac/b/g/n with Wireless Display
[] Integrated Camera, Bluetooth, HD Audio
[] Integrated SD Reader
[] HDMI out supports external 4K display
[] Runs Windows 7/10 and Linux
[] Designed for mobile business computing

I7,1080P Panel 4G RAM 240G SSD Windows 7 Home $1199

SKU: UltraNote 538i7G
Product specifications
Processor

• Intel® Core™ i7-7500u Mobile Processor 2.7/3.5GHz, 4M Cache, 15W
• Dual Core 4 Threads 64-bit VT, with HD 620 Series Graphics
• Option: Intel® Core™ i7-6500u Mobile Processor HD 520 Graphics
• Option: Intel® Core™ i7-8550u Mobile Processor UHD 620 Graphics

Chipset
• Intel® Kaby Lake-u SoC
Memory
• Supports DDR4 2400MHz SODIMM, 1 x SO-DIMM up to 16 GB
Video Output
• 15.6" (3840x2160) 4K LED Display (IPS)
Graphics
• Intel HD 620 Series Graphics, Supports Wireless Display
• HDMI® Port supports external 4K Display
Expansion Slot
• 2 x M.2 Slots
• 1 for SSD, 1 for WiFi+BT
Storage
• M.2 Super Fast SSD
• 2.5-inch ultra-slim 7mm SATA HDD or SSD as 2nd storage
Audio
• Realtek HD Audio Codec
• 3.5mm Audio out, Mic-in
• Two Stereo Speakers
Network
• Via USB Gigabit LAN Module or Type-C
• M.2 Intel® 802.11ac/n/g WiFi + Bluetooth (Optional Atheros WiFi)
I/O
• Camera for Multimedia
• 1 x Card Reader (SD/MMC)
• 1 x HDMI® Out (supports 4K display)
• 3x USB 3.0 (1 x type-C), 2 x USB 2.0
• 1 x Audio Headphone+Microphone 3.5mm jack
• 1 x TPM Header
Other I/O
• US/UK/German Backlite Keyboard with Touchpad
• 4 cell battery 6300mAh, 9 hours on Windows 8x Idle, >6 hours full HD playback
System BIOS
• AMI EFI 128 Mbit flash
• PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Management
• WOL, PXE, PME Wake
OS Support

• Windows 7, Windows 10,  IoT, Linux, FreeBSD.
• Customization service is available

Chassis
• Ultra Slim Aluminum
• Color: Silver (Optional Dark Grey)
• Dimensions:375×244×22mm
• Weight: 1.8kg
• DC19V 2.1A 40W Power Adapter (Fanless) UL/CE/FCC Certified
Application
• Business Computing, Home Entertainment, Thin Client, etc.
Environment
• Operating Temperature: -5 to +45 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
