PolyStation C621A8

Dual Socket P Intel® Xeon®, 10 SATA3-6 + 2 Gigabit LAN
8 DDR4 up to 1TB, 6 PCIe 3.0 Slots
Featured Highlights
Dual Socket P Intel® Xeon® Scalable Processors.
Intel® C621
up to 1TB Registered ECC DDR4, 8x DIMM slots.
2 PCI-E 3.0 x16,3 PCI-E 3.0 x8,1 PCI-E 3.0 x4 (in x8 slot)
1 VGA port
Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Dual LAN with Lewisburg Marvell® 88E1512 PHY

SKU: PolyStationC621A8
Product specifications
Processor
• Intel® Xeon® Scalable Processors.
• Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s
Chipset
• Intel® C621
Memory
• Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots
• 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
On-Board Devices
• Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• ASPEED AST2500
• Aspeed AST2500 BMC
Network

• Dual LAN with Lewisburg Marvell® 88E1512 PHY

Expansion Slot
• 2 PCI-E 3.0 x16
• 3 PCI-E 3.0 x8
• 1 PCI-E 3.0 x4 (in x8 slot)
I/O
• 10 SATA3 (6Gbps) port
• 2 RJ45 Gigabit Ethernet LAN ports
• 4 USB 2.0 ports (2 rear + 2 headers)
• 3 USB 3.0 ports (2 headers + 1 Type A)
• 1 VGA port
• 1 COM Port (1 header)
• 1 TPM Header

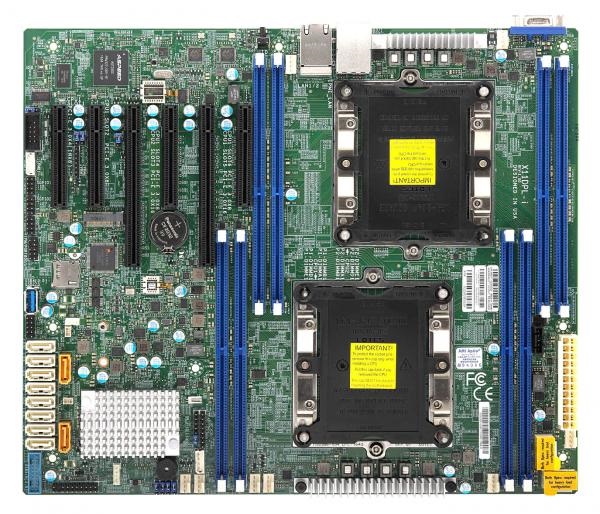

Systemboard

ATX 12.076" x 10.15"

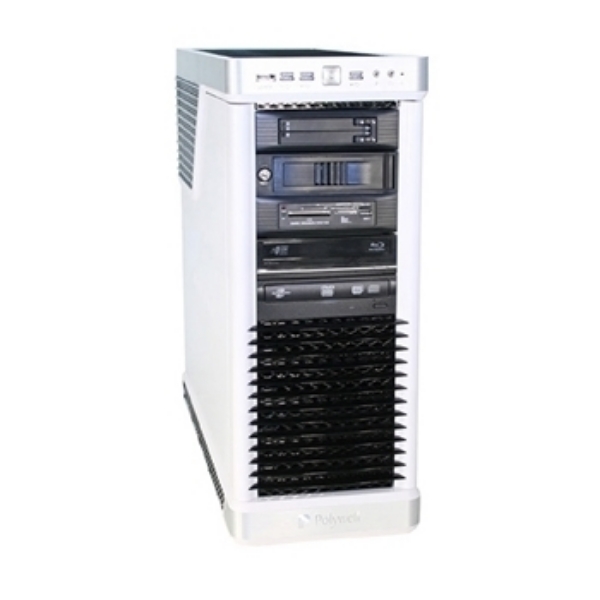

Chassis
TS900W 9-Bay ATX Tower
• 9 external 5.25" with Easy Front Removable Tray
• 210 (W) x 510 (H) x 549 (D) mm, 8.26 (W) x 20 (H) x 21.6 (D) inch
BIOS AMI UEFI
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
Product specifications
Processor
• Intel® Xeon® Scalable Processors.
• Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s
Chipset
• Intel® C621
Memory
• Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots
• 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
On-Board Devices
• Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
• ASPEED AST2500
• Aspeed AST2500 BMC
Network

• Dual LAN with Lewisburg Marvell® 88E1512 PHY

Expansion Slot
• 2 PCI-E 3.0 x16
• 3 PCI-E 3.0 x8
• 1 PCI-E 3.0 x4 (in x8 slot)
I/O
• 10 SATA3 (6Gbps) port
• 2 RJ45 Gigabit Ethernet LAN ports
• 4 USB 2.0 ports (2 rear + 2 headers)
• 3 USB 3.0 ports (2 headers + 1 Type A)
• 1 VGA port
• 1 COM Port (1 header)
• 1 TPM Header
Systemboard

ATX 12.076" x 10.15"

Chassis
TS900W 9-Bay ATX Tower
• 9 external 5.25" with Easy Front Removable Tray
• 210 (W) x 510 (H) x 549 (D) mm, 8.26 (W) x 20 (H) x 21.6 (D) inch
BIOS AMI UEFI
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
