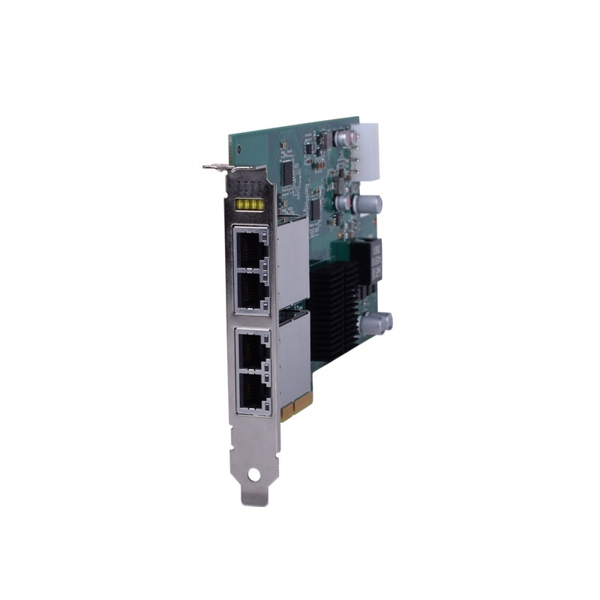

PoE-C100 Series

4CH PCI Express GigE Vision PoE+ Frame Grabbers with PoE Power Management & Protection
Featured Highlights
•  PCI Express x4 compliant
•  Support for 4 independent Gigabit Ethernet ports
•  Support Time Sensitive Networking (TSN)
•  IEEE 802.3at for PoE+ (Power over Ethernet Plus)
•  Multiple cards and cameras in one single system
•  Powered Device (PD) auto detection and classification
•  Operating temperature range from 0˚C to +70˚C,
•  supporting non-drop frame capture in extreme environments
  C100 Series PCI Express GigE Vision PoE+ Frame Grabber supports 4CH independent Gigabit Ethernet ports for multiple GigE Vision connections transferring up to 1 Gb/s per port. PoE+ provides up to 30W power and automatic detection for stable,reliable connections, cost-saving, simplifying installation and easing maintenance burden.Any number of C100 series cards can be installed in one single system without occupying any I/O resources, for multi card single system machine vision grabs. Operating temperature range supports integration with fanless computer for AOI applications in harsh.
Exclusive comprehensive PoE Protection designs for over current and over voltage protection. Power budget control adjusts PoE port power supply automatically to avoiding equipment damage.
•  PDF Datesheet

SKU: PoE-C100 Series
Product specifications
Form Factor
• PCI Express ® x4
LAN
• 4 fully-integrated Gigabit Ethernet Media Access Control (MAC) and physical layer (PHY) ports.
• PoE+ (Power over Ethernet Plus), IEEE 802.3at compliant
Function
• 9 KB jumbo frame support
• PoE Power Management
• Link Aggregation, IEEE 1588 (PTP)
• Multiple cards and multiple cameras
• PoE Protection
Power
• Max 100W PoE power from 4-pin power connector (+12V@8A)
• Max 20W PoE power from PCIe slot (+12V@2.1A)
Operating Environment
• 60W PoE: 0˚C to +70˚C (32˚F to 150˚F)
• Humidity: 5% to 90% RHNC
OS Support
• Windows 7/8/10、Linux
Dimensions
• 168 mm x 112 mm (W x L)
*
*
*
