Storage Server

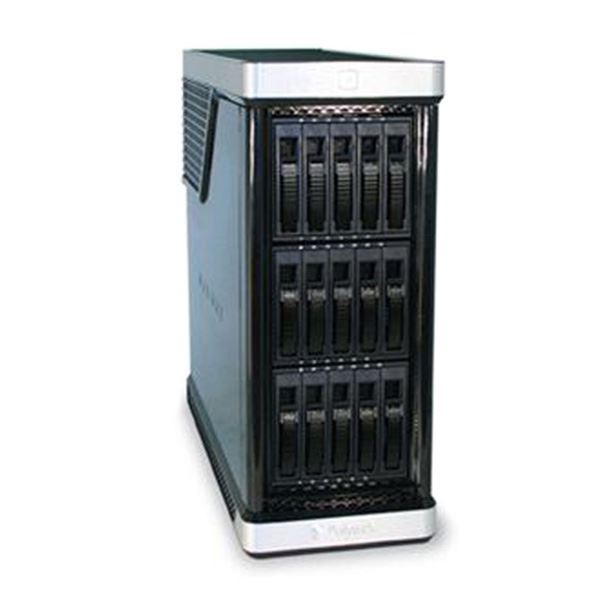

NetDisk 9015H / 9015A / 9015B

15 x SATA RAID-0,1,5,6,10, Hot Spare 2 x GigaLAN, Quiet, High Performance 12Gbps
Featured Highlights
•  Dimensions:
       21.6"(L)x8.26"(W)x20"(H) inch
Data File Sharing among Windows, Linux OS, and Macintosh users, with user name,
  Password protection, and managed access in local workgroups.
The backup and recovery application provides system backup, remote boot and recovery for windows
  Clients.
Can act as a Dynamic Host Configuration Protocol (DHCP) server
Can also act as a DHCP client.
Can be used as linear storage or be set up as RAID 0
User-friendly Web interface for setting up users and access roghts.
Built-in FTP server provides convenient high-speed file transfers.

Netdisk 9015H/9015A/9015B is an intelligent network storage solution for the small office, medium office, or home network environments, and will cost less than comparable Windows file servers.



SKU: NetDisk 9015H / 9015A / 9015B

Product specifications
Processor

• Intel® Xeon® Processor E5-2600 V4 Series

Memory

• ECC 16GB Registered Memory
• Optional: up to 32GB system memory

OS and Storage Manager
• Linux OS and NAS/iSCSI WEB based Manager
• Optional: Solaris, Windows Server, MS Storage Server, VMware, FreeBSD, Other Open Soruce Linux.
File System

• XFS, EXT3 standard
• Optional: ZFS, NTFS, or any file system supported by the x86 platform

Network I/O

• 4 Gigabit LAN ports
• Option: Additional 4xGigabit LAN, 10Gbit Ethernet, Fibre Channel for SAN

Network Service

• DHCP client/server (default is DHCP client/Static)
• Network Protocol: CIFS/SMB, NFS, FTP
• iSCSI (optional)

Management Interface

• Web GUI
• E-mail notification

Expansion Slot

• Up to 6 x PCIe 3.0 slots

Remote Boot Function

• Requires NIC with PXE support on client

File Sharing

• Authorizes users to access shared folder by passwords (by default there is one "Public" shared folder)

Access Control

• Allows users to access shared files for "Read Only" or "Read/Write"

Storage/RAID

• 15 x 3.5" SATA/SATA-II Hot-Swap Drive
• RAID 5, 6, 10, 1 and 0 with Hot Spare supported

I/O Ports

• 4x USB 2.0 connectors
• VGA graphics

Client Support

• Supports MS Windows 2000, Windows XP and Windows 2003, Linux and Mac

Remote Controls

• Power on/off, system reset + USB
• IPMI, KVM over IP, Remote Power On/Off is supported

Indicators

• Power, LAN and HDD LEDs

Cooling

• 2 x ball-bearing cooling fans (Front and Back)

Power Supply

• 550W 80 Plus power supply
• Redundant PSU (optional)

Operating Temperature

• From 10ºC to 35ºC (50ºF to 95ºF)

Non-Operating Temperature

• From -40ºC to 70ºC (-40ºF to 158ºF)

Operating Humidity

• From 10% to 90% relative humidity

EMI Safety

• CE/FCC

Dimensions

• Tower chassis
• Dimensions: 210 (W) x 510 (H) x 549 (D) mm
• 8.26 (W) x 20 (H) x 21.6 (D) inch
• Weight: 16.5kg (36 lb)

Warranty

• SAS and SATA-E Hard Driver carry 5 year,SATA-N carries 3 year
• Base system:3 year standard parts and depot labor;lifetime toll free phone support.
• Optional:3 or 5-year(total years) extended warranty with advanced parts replacement service.
• Optional:7+year extended warranty service available.
• On-site service is available with additional cost.

*
*
*
Product specifications
Processor

• Intel® Xeon® Processor E5-2600 V4 Series

Memory

• ECC 16GB Registered Memory
• Optional: up to 32GB system memory

OS and Storage Manager
• Linux OS and NAS/iSCSI WEB based Manager
• Optional: Solaris, Windows Server, MS Storage Server, VMware, FreeBSD, Other Open Soruce Linux.
File System

• XFS, EXT3 standard
• Optional: ZFS, NTFS, or any file system supported by the x86 platform

Network I/O

• 4 Gigabit LAN ports
• Option: Additional 4xGigabit LAN, 10Gbit Ethernet, Fibre Channel for SAN

Network Service

• DHCP client/server (default is DHCP client/Static)
• Network Protocol: CIFS/SMB, NFS, FTP
• iSCSI (optional)

Management Interface

• Web GUI
• E-mail notification

Expansion Slot

• Up to 6 x PCIe 3.0 slots

Remote Boot Function

• Requires NIC with PXE support on client

File Sharing

• Authorizes users to access shared folder by passwords (by default there is one "Public" shared folder)

Access Control

• Allows users to access shared files for "Read Only" or "Read/Write"

Storage/RAID

• 15 x 3.5" SATA/SATA-II Hot-Swap Drive
• RAID 5, 6, 10, 1 and 0 with Hot Spare supported

I/O Ports

• 4x USB 2.0 connectors
• VGA graphics

Client Support

• Supports MS Windows 2000, Windows XP and Windows 2003, Linux and Mac

Remote Controls

• Power on/off, system reset + USB
• IPMI, KVM over IP, Remote Power On/Off is supported

Indicators

• Power, LAN and HDD LEDs

Cooling

• 2 x ball-bearing cooling fans (Front and Back)

Power Supply

• 550W 80 Plus power supply
• Redundant PSU (optional)

Operating Temperature

• From 10ºC to 35ºC (50ºF to 95ºF)

Non-Operating Temperature

• From -40ºC to 70ºC (-40ºF to 158ºF)

Operating Humidity

• From 10% to 90% relative humidity

EMI Safety

• CE/FCC

Dimensions

• Tower chassis
• Dimensions: 210 (W) x 510 (H) x 549 (D) mm
• 8.26 (W) x 20 (H) x 21.6 (D) inch
• Weight: 16.5kg (36 lb)

Warranty

• SAS and SATA-E Hard Driver carry 5 year,SATA-N carries 3 year
• Base system:3 year standard parts and depot labor;lifetime toll free phone support.
• Optional:3 or 5-year(total years) extended warranty with advanced parts replacement service.
• Optional:7+year extended warranty service available.
• On-site service is available with additional cost.
