Storage Server

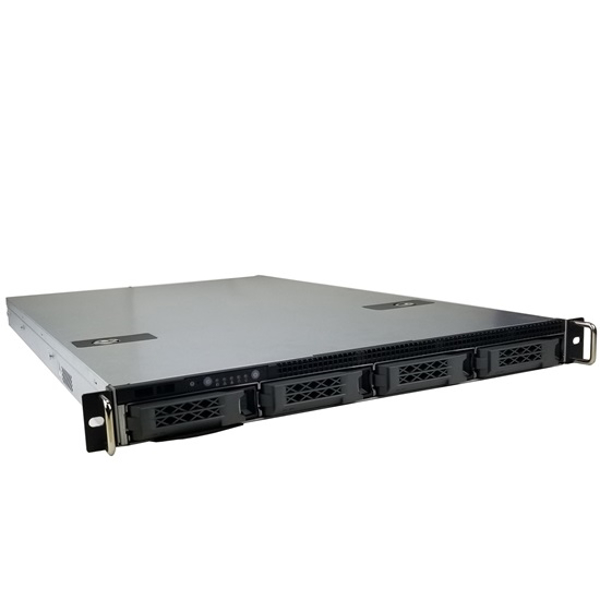

NetDisk 1004B

4 x SATA RAID-0,1,5,6,10, Hot Spare 2 x GigaLAN, Quiet and High Performance
Featured Highlights
Data file sharing among Window, Linux OS, and Macintosh users, with user name,
  Password protection, and managed access in local workgroups.
The backup and recovery application provides system backup,
  Remote boot and recovery for Windows clients.
Can act as a Dynamic Host Configuration Protocol (DHCP) server.
Can act as a DHCP client for easy network configuration.
Can be used as linear storage or set up as RAID 0.
User-Friendly Web interface for setting up users and access rights.
Built-in FTP server provides convenient high-speed file transfers.

Netdisk1004B is an intelligent network storage soution for small office, medium office, costing less than Windows file servers.



SKU: NetDisk 1004B

Product specifications
Processor

• Intel® Atom® Dual Core Processor

Memory

• DDR3 4GB SO-DIMM Memory
• Optional: up to 8GB system memory

OS and Storage Manager
• Linux OS and NAS/iSCSI WEB based Manager
• Optional: Solaris, Windows Server, MS Storage Server, VMware, FreeBSD, Other Open Soruce Linux.
File System

• XFS, EXT3 standard
• Optional: ZFS, NTFS, or any file system supported by the x86 platform

Network I/O

• 2 Gigabit LAN ports
• Option: Additional 4xGigabit LAN, 10Gbit Ethernet, Fibre Channel for SAN

Network Service

• DHCP client/server (default is DHCP client/Static)
• Network Protocol: CIFS/SMB, NFS, FTP
• iSCSI (optional)

Management Interface

• Web GUI
• E-mail notification

Expansion Slot

• Up to 2 x Expansion slots

Remote Boot Function

• Requires NIC with PXE support on client

File Sharing

• Authorizes users to access shared folder by passwords (by default there is one "Public" shared folder)

Access Control

• Allows users to access shared files for "Read Only" or "Read/Write"

Storage/RAID

• Four 3.5" SATA/SATA-II Hot-Swap Drive
• RAID 5, 6, 10, 1 and 0 with Hot Spare supported

I/O Ports

• 2x USB 2.0 connectors

Client Support

• Supports MS Windows 2000, Windows XP and Windows 2003, Linux and Mac

Remote Controls

• Power on/off, system reset + USB
• IPMI, KVM over IP, Remote Power On/Off is supported

Indicators

• Power, LAN and HDD LEDs

Cooling

• Hot-swap cooling fans

Power Supply

• 1+1 redundant power supply UR/FCC/CE Certified

Operating Temperature

• From 10ºC to 35ºC (50ºF to 95ºF)

Non-Operating Temperature

• From -40ºC to 70ºC (-40ºF to 158ºF)

Operating Humidity

• From 10% to 90% relative humidity

EMI Safety

• CE/FCC

Dimensions

• 1U Rackmount Chassis

Warranty

• SAS and SATA-E Hard Driver carry 5 year,SATA-N carries 3 year
• Base system:3 year standard parts and depot labor;lifetime toll free phone support.
• Optional:3 or 5-year(total years) extended warranty with advanced parts replacement service.
• Optional:7+year extended warranty service available.
• On-site service is available with additional cost.

*
*
*
