Think Big. Go Small. Eco-Smart Computing

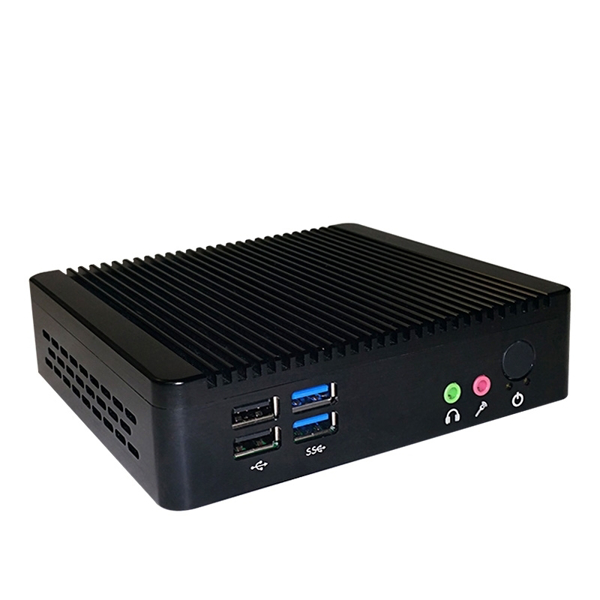

Nano-J1900L2B

Intel Celeron J1900, HDMI, VGA, 2 LAN, COM, SATA, mSATA, MiniPCIe
Featured Highlights
Intel® Celeron™ J1900 Processor
Intel® Bay Trail Platform (SOC)
Intel® 7th Generation HD Graphics 1080p 2K Resolution, HDMI+VGA
DDR3L SO-DIMM for up to 8GB Memory
MiniPCIe
2 Realtek® Gigabit LAN
2 USB 3.0, 4 USB 2.0
SATA-6Gb/s, mSATA
5.1 ALC661 Audio Sound
Power Supply: DC12V input
OS Support: Windows 7, Windows 8x, Windows 10, IoT, Linux
Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, Traffic Controller, IoT/Edge System, etc.

SKU: Nano-J1900L2B
Product specifications
Processor
• Intel® Celeron® J1900 2.00/2.42GHz 4Core 4Threads 2M 10W
Chipset
• Intel® Bay Trail Platform (SOC)
Graphics
• Intel® 7th Generation HD Graphics 1080p 2K Resolution
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI® 1.4 version and HDCP 2.2
• 1 x VGA Port
Memory
• 1 x DDR3L SO-DIMM
• 1600/1333MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 8GB
Network
• 2 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
Expansion Slot
• 1 x MiniPCIe full size Slot
Storage
• 1 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio
• Realtek® ALC661 6-channel (5.1)
• 2 x 3.5mm analog stereo audio jacks
Back Panel I/O
• 1 x Serial COM port (1 RJ45)
• 1 x HDMI® port
• 1 x VGA port
• 2 x LAN ports
• 1 x DC-In 2.5mm Jack port
Internal I/O
• 2 x USB 2.0 Headers
Other I/O
• 2 x USB 3.0 Ports (Front)
• 2 x USB 2.0 Ports (Front)
• 2 x 3.5mm jack(Front)
System BIOS
• AMI® UEFI BIOS
Chassis
• Nano Small Form Factor with aluminum heatsink for Fanless design
• Dimensions: 1.8(H) x 5.9(W) x 4.96(D) inch, Weight: 1.5 lb (net) 6 lb(gross with packaging)
• Drive Bay: mSATA storage socket (Optional 2.5" via other chassis)
• Aluminum heatsink for Fanless design, optional cooling fan
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
Power Supply
• Power: DC12V Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7, Windows 8x, Windows 10, IoT, Linux
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, Traffic Controller, IoT/Edge System, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
