 Think Big. Go Small. Eco-Smart Computing

J3455E/J4205E

Intel Celeron J3455, HDMI, DVI, VGA, COM, 4 SATA, PCIe 1x
Featured Highlights
Intel® Celeron™ Celeron/Pentium-u Processor
Intel® Apollo Lake Platform (SOC)
Intel® HD 500/HD 505 4K Graphics ,HDMI+DVI+VGA
2 x DDR3/DDR3L SO-DIMM for up to 16GB Memory
PCIe 1x
Realtek® Gigabit LAN
3 USB 3.0, 4 USB 2.0
4 x SATA-6Gb/s, M.2 SSD/NVMe
7.1 ALC892 Audio Sound
Power Supply: ATX input
OS Support: Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, POS/Kiosk, Surveillance, AV Player, etc.

SKU: J3455E/J4205E
Product specifications
Processor
• Intel® Celeron® J3455 1.50/2.30GHz 4Core 4Threads 2M 10W
• Intel® Pentium® J4205 1.50/2.60GHz 4Core 4Threads 2M 10W
Chipset
• Intel® Apollo Lake Platform (SOC)
Graphics
• Intel® HD 500 Graphics, 4K Resolution
• Option: Intel® HD 505 Graphics, 4K Resolution
• Support 3 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI® 1.4 version and HDCP 2.2
• 1 x DVI Port
• 1 x VGA Port
Memory
• 2 x DDR3/DDR3L SO-DIMM
• 1866/1600/1333MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 16GB (however 8GB is most practical)
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
Expansion Slot
• 1 x PCI Express 3.0 1x slot
Storage
• 4 x SATA 6Gb/s
• 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe 4x NVMe)
Audio
• Realtek® ALC892 8-channel (7.1)
• Support for S/PDIF Out
Back Panel I/O
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 1 x HDMI® port
• 1 x DVI port
• 1 x VGA port
• 1 x LAN port
• 1 x S/PDIF port
• 2 x PS/2 Ports for Keyboard and Mouse
Internal I/O
• 1 x USB 3.0 Header
• 2 x USB 2.0 Headers
• 1 x Serial COM Header
Function
• 1 x TPM Header
System BIOS
• AMI® UEFI BIOS

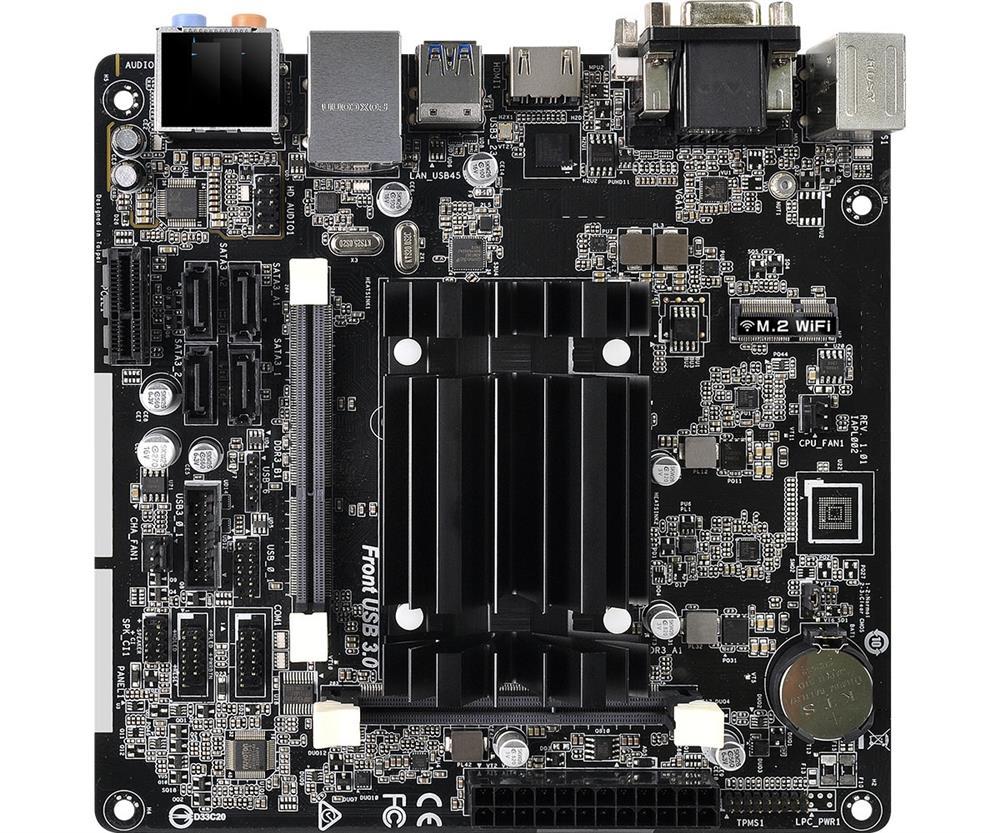

Systemboard
Small Form Factor

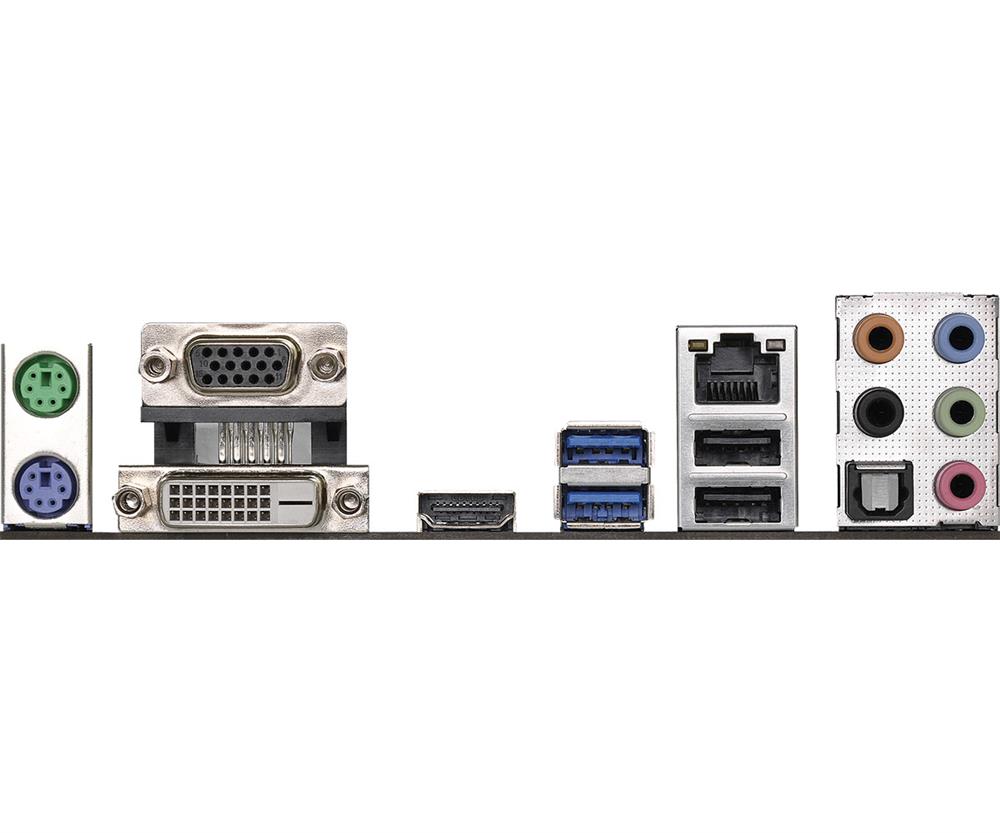

Back I/O

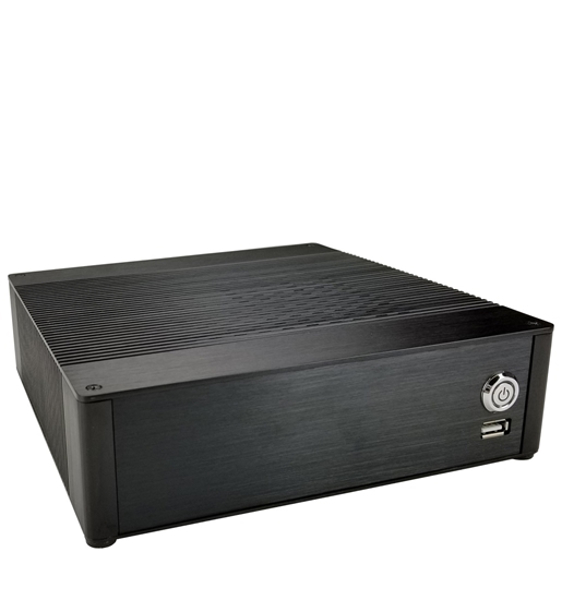

Chassis
• 300B Series Aluminum Mini Chassis
• Dimensions:300 Case: 8.1(L) x 8.1(W) x 2.2(H) inch
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging)
• Color: Black as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
• Optional: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5"
• Optional: 500B 3.5" H w/LP Slot 500A DVD Bay +LP Slot 500D with 5.25" Bay 500F Dust Filter 500C LCD Control
• Optional: 1750C Aluminum Form Factor
Power Supply
• 100-240V ATX AC Power connector input
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10, IoT, Linux
Application
• Set Top Box, Digital Signage, POS/Kiosk, Surveillance, AV Player, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
