 Think Big. Go Small. Eco-Smart Computing

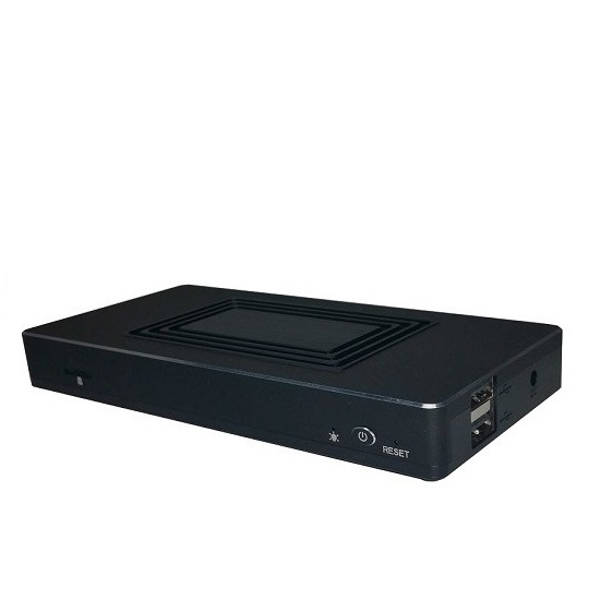

Nano-N3450C

Apollo Lake HDMI COM eMMC, mSATA , M.2
Featured Highlights
Intel® Celeron™ Celeron/Pentium/Atom-u Processor
Intel® Apollo Lake Platform (SOC)
Intel® HD 500 Graphics, 4K Resolution, HDMI
2 x DDR3L SO-DIMM for up to 8GB Memory
Realtek® Gigabit LAN, 11ac WiFi
1 USB 3.0, 2 USB 2.0, Type-C
Power Supply: DC12V input
OS Support: Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, etc.

SKU: Nano-N3450C
Product specifications
Processor
• Intel® Celeron® N3450 1.10/2.20GHz 4Core 4Threads 2M 6W
• Intel® Celeron® N3350 1.10/2.40GHz 2Core 2Threads 2M 6W
• Intel® Pentium® N4200 1.10/2.50GHz 4Core 4Threads 2M 6W
• Intel® Atom® E3940 1.60/1.80GHz 4Core 4Threads 2M 9.5W
Chipset
• Intel® Apollo Lake Platform (SOC)
Graphics
• Intel® HD 500 Graphics, 4K Resolution
• Support 1 Graphics port
• 1 x HDMI® , supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI® 1.4 version and HDCP 2.2
Memory
• 2 x DDR3L SO-DIMM
• 1600/1333MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 8GB
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• 802.11ac/n Dual-Band Wi-Fi (2.4GHz / 5.0GHz)
Storage
• 1 x TF (microSD) Slot supports 128G+ microSD/TF Card
Audio
• 1 x 3.5mm analog stereo audio jacks
Back Panel I/O
• 1 x USB Type-C port(for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions)
• 1 x HDMI® port
• 1 x LAN port
• 1 x DC-In 2.5mm Jack port
Other I/O
• 1 x USB 3.0 Port (Side)
• 2 x USB 2.0 Ports (Side)
• 1 x 3.5mm jack(Side)
System BIOS
• AMI® UEFI BIOS
Chassis
• NUC Tiny Chassis
• Dimensions: 0.95(H) x 4.1(W) x 4.1(D) inch, Weight: 0.7 lb (net)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
Power Supply
• Power: DC12V Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10, IoT, Linux
Application
• Set Top Box, Digital Signage, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
