Think Big. Go Small. Eco-Smart Computing

J1900Y1

Intel Celeron J1900, HDMI, VGA, LVDS, 6 COM, SATA, SIM
Featured Highlights
Intel® Celeron™ J1900 Processor
Intel® Bay Trail Platform (SOC)
Intel® HD Graphics 1920x1080, HDMI+VGA+LVDS
DDR3L SO-DIMM for up to 8GB Memory
Realtek® Gigabit LAN(Option:one more LAN) + MiniPCIe-WiFi
1 USB 3.0, 3 USB 2.0
SATA-6Gb/s
5.1 ALC662 Audio Sound
Power Supply: DC12V 36-60W input
OS Support: Windows 7, Windows 8, Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, POS/Kiosk, etc.
SKU: J1900Y1
Product specifications
Processor
• Intel® Celeron® J1900 2.00/2.42GHz 4Core 4Threads 2M 10W
Chipset
• Intel® Bay Trail Platform (SOC)
Graphics
• Intel® 7th Generation HD Graphics 1080p 2K Resolution
• Support 3 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2
• 1 x VGA Port
• 1 x LVDS Port
Memory
• 1 x DDR3L SO-DIMM
• 1600/1333MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 8GB
Network
• 1 x Realtek® RTL8111F Gigabit (10/100/1000 Mb/s) LAN
• Optional 1 x Realtek RTL8111F Gigabit (10/100/1000 Mb/s) LAN
• 1 x MiniPCIe half size WiFi+BT Socket (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x MiniPCIe half size WiFi+BT Socket (for WiFi+BT or Other Module)
• 1 x SIM socket for 3G/4G-LTE option
Storage
• 1 x SATA 6Gb/s
Audio
• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm analog stereo audio jacks
Back Panel I/O
• 1 x USB 3.0 Port
• 1 x USB 2.0 Port
• Option: 2 x USB 2.0 or 2nd LAN
• 1 x HDMI® port
• 1 x VGA port
• 1 x LVDS port
• 1 x LAN port
• 2 x 3.5mm jack
• 1 x DC-In 2.5mm Jack port
Internal I/O
• 2 x USB 2.0 Headers
• 6 x Serial COM Headers
• 1 x PS/2 Header
Function
• 1 x 4in/4out GPIO Header
System BIOS
• Watchdog supported

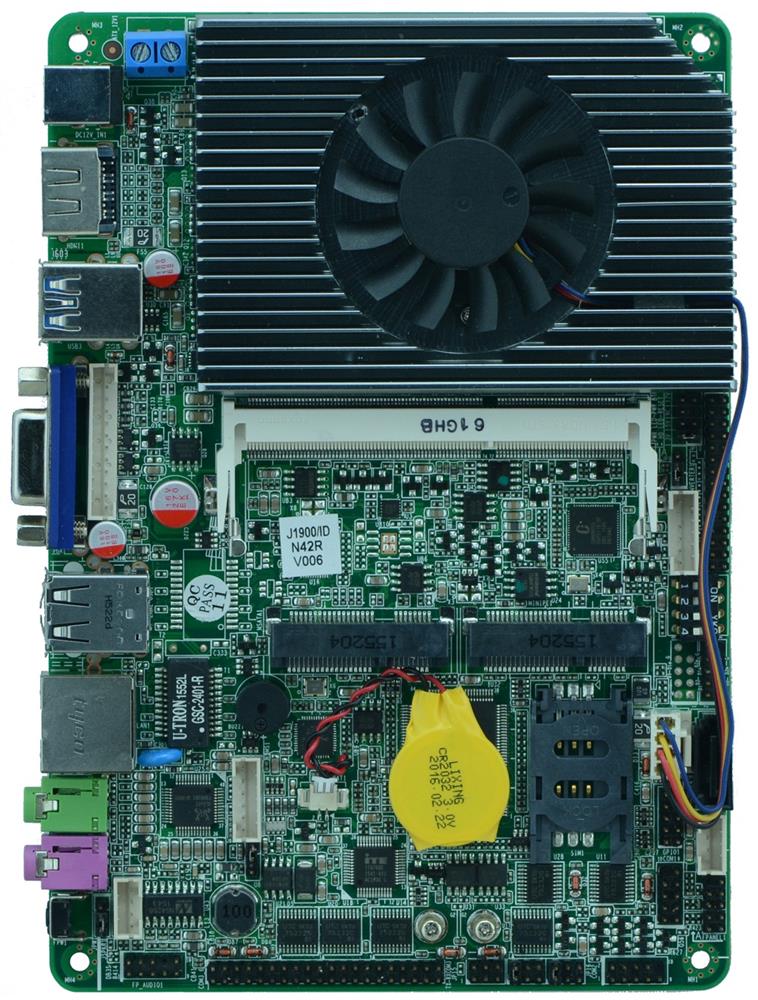

Systemboard
Small Form Factor

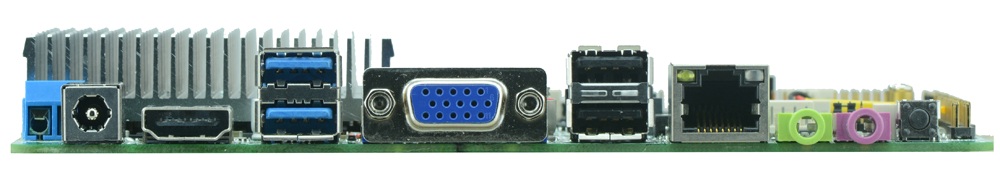

Back I/O

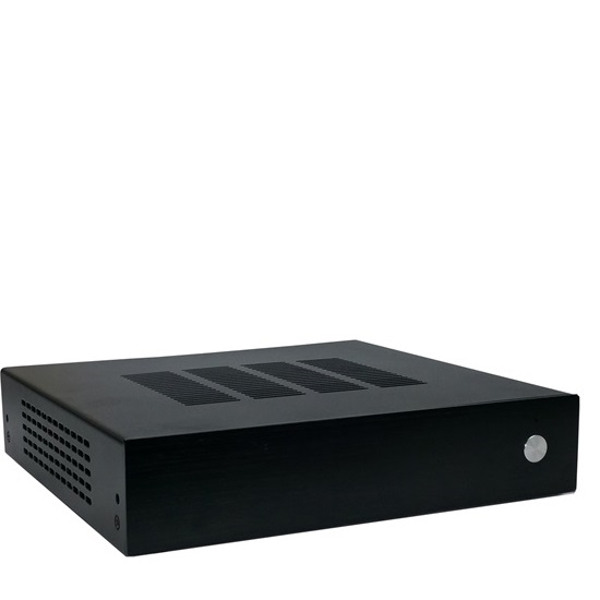

Chassis
• 300B Series Aluminum Mini Chassis
• Dimensions:300 Case: 8.1(L) x 8.1(W) x 2.2(H) inch
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging)
• Color: Black as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
• Option: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5"
• Option: 500B 3.5" H w/LP Slot 500A DVD Bay +LP Slot 500D with 5.25" Bay 500F Dust Filter 500C LCD Control
• Option: 1750C with slot
Power Supply
• Power: DC12V 36-60W Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7, Windows 8, Windows 10, IoT, Linux
Application
• Set Top Box, Digital Signage, POS/Kiosk, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
