Think Big. Go Small. Eco-Smart Computing

i5-7200FL/i7-7500FL/i3-7100FL

i5-7200u, HDMI, VGA, 2miniPCIe, LVDS
Featured Highlights
Intel® Core™ i5-7200u Processor
Intel® Kaby Lake-u/Skylake-u Platform (SOC)
Intel® HD 620 Graphics, 4K Resolution, HDMI+VGA+LVDS
DDR4 SO-DIMM for up to 32GB Memory
SATA-6Gb/s, mSATA
2 MiniPCIe
Gigabit LAN
2 USB 3.0, 4 USB 2.0
5.1 ALC662 Audio Sound
DC12V 5A 60W or higher wattage Power Adapter(UL/CE/FCC Certified)
OS Support: Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, etc.
SKU: i5-7200FL/i7-7500FL/i3-7100FL
Product specifications
Processor
• Intel® Core® i5-7200u 2.50/3.10GHz 2Core 4Threads 3M 15W
• Option: 7th Generation Kaby Lake Intel® Core® i3-7100u, i3-7020u, i3-7130u, i5-7200u, i5-7260u, i5-7267u, i5-7287u, i5-7300u, i5-7360u, i7-7500u, i7-7560u, i7-7567u, i7-7600u,i7-7660u, Pentium® 4415u, Celeron® 3865u
• Option: 6th Generation Skylake Intel® Core® i3-6100u, i3-6006u, i3-6157u, i5-6200u, i5-6260u, i5-6267u, i5-6287u, i7-6500u, i7-6560u, i7-6567u, i7-6600u,Pentium® 4405u, Celeron® 3855u
Chipset
• Intel® Kaby Lake-u Platform (SOC)
• Option: Intel® Skylake Platform (SOC)
Graphics
• Intel® HD 620 Graphics, 4K Resolution
• Support 3 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2
• 1 x VGA Port
• 1 x LVDS Port
Memory
• 1 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 32GB
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 2 x MiniPCIe full size slot for mSATA
Storage
• 1 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio
• Realtek® ALC662 6-channel (5.1)
Back Panel I/O
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 1 x HDMI® port
• 1 x VGA port
• 1 x LVDS port
• 1 x LAN port
• 1 x DC-In 2.5mm Jack port
• Optional 2 RS-232 Serial module
Internal I/O
• 2 x USB 2.0 Headers
System BIOS
• AMI® UEFI / Legacy BIOS

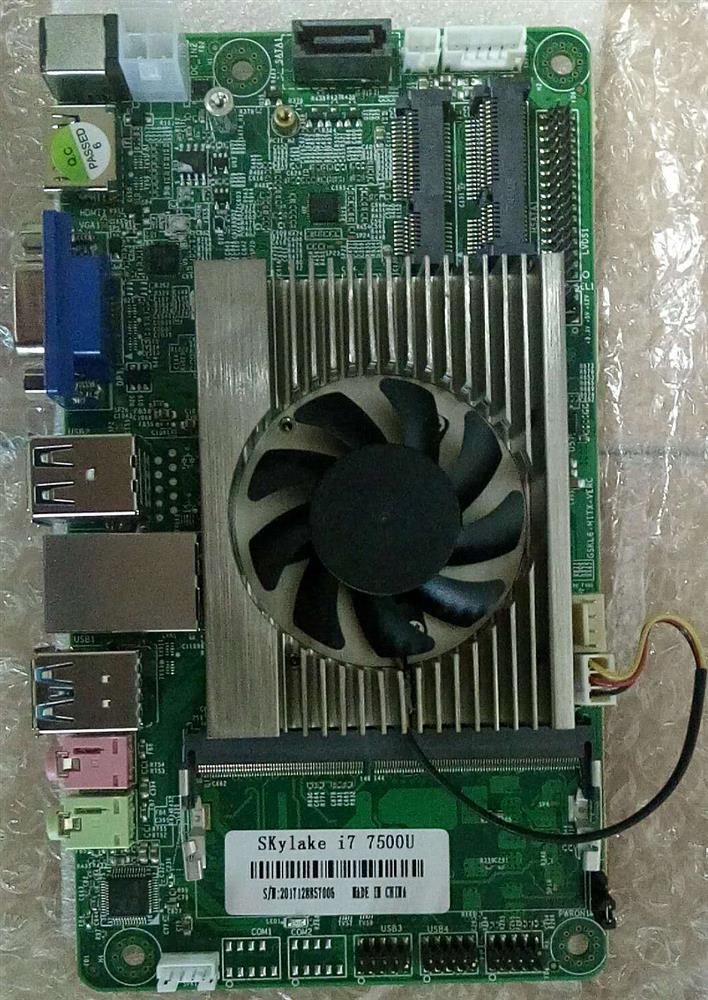

Systemboard
Small Form Factor

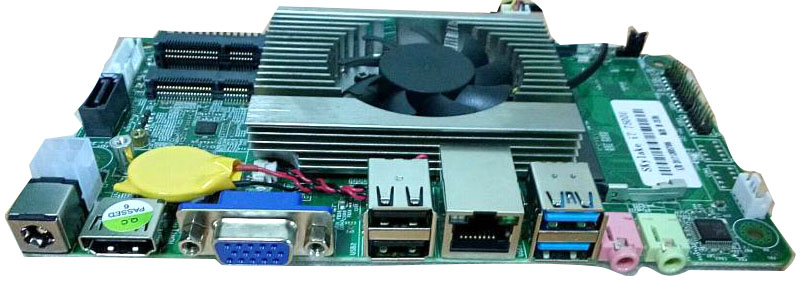

Back I/O

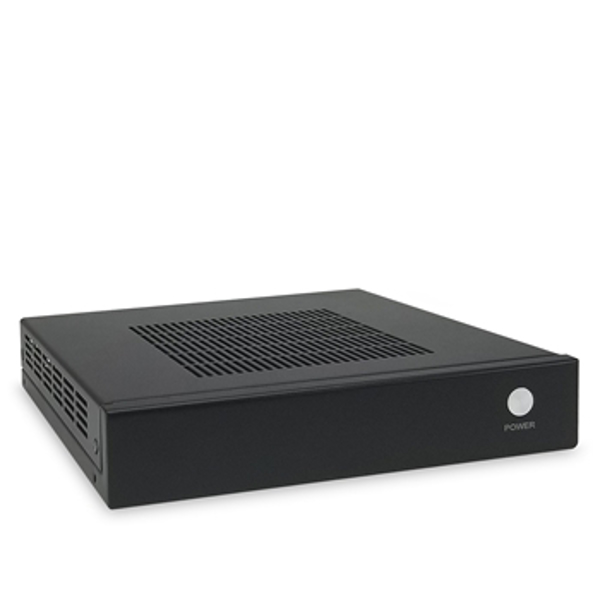

Chassis
• 10A Series Fanless Aluminum Chassis
• Dimensions:7.5(L) x 7.5(W) x 1.4(H) inch
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• System Weight: 2.5 lb(Net) and 4.5 lb(Gross with packaging)
• Color: Black as default color, custom colors available with special order
• Option: 100F Fanless 1.4" Slim
• Option: 138D 7"x7"x1.38H
• Option: 140D 7"x7"x1.4"
Power Supply
• Power: DC12V 5A 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option ••
• • Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10, IoT, Linux
• Option: Windows 7 (works with Skylake Processor family only)
Application
• Set Top Box, Digital Signage, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
