Processor
• Intel® Core™ i5-6200u 2.30/2.80GHz 2Core 4Threads 3M 15W • Option: 6th Generation Skylake Intel® Core™ i3-6100u, i3-6006u, i3-6157u, i5-6200u, i5-6260u, i5-6267u, i5-6287u, i7-6500u, i7-6560u, i7-6567u, i7-6600u, Pentium® 4405u, Celeron® 3855u
Chipset
• Intel® Skylake Platform (SOC)
|
Graphics
• Intel® HD 520 Graphics, 4K Resolution • Support 2 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DVI port
Memory
• 2 x DDR3L SO-DIMM
• 1600/1333MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 16GB
|
Network
• 2 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Pair with SIM) • 1 x SIM socket for 3G/4G-LTE option • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x MiniPCIe full size slot (for WiFi+BT/4G-LTE Pair with SIM)
|
Storage
• 2 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio
• Realtek® ALC662 6-channel (5.1)
|

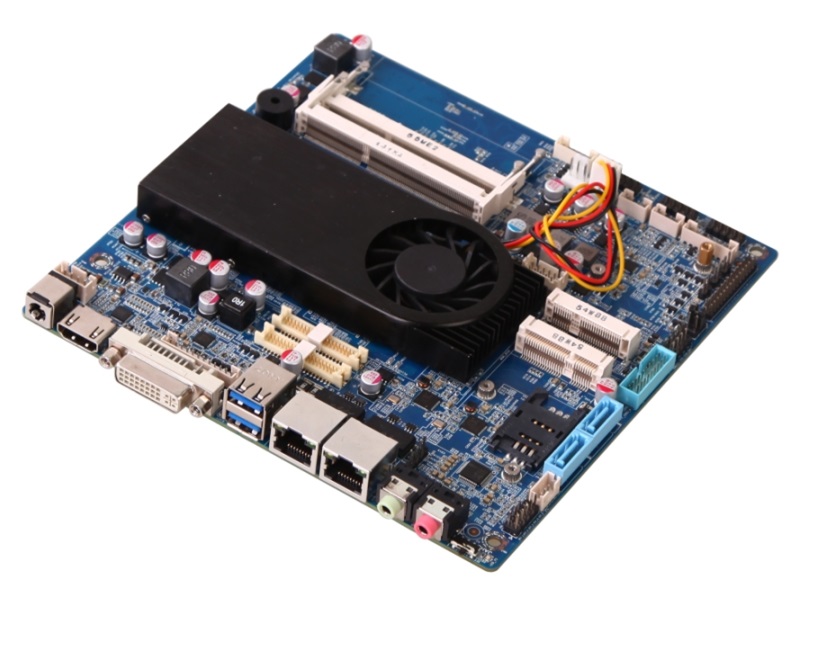

Back Panel I/O
• 2 x USB 3.0 ports • 1 x HDMI® port • 1 x DVI port • 2 x LAN ports • 1 x DC-In 2.5mm Power Connector
Internal I/O
• 2 x USB 3.0 headers • 2 x USB 2.0 headers • 2 x Serial COM headers
|
System BIOS
• Watchdog supported
|

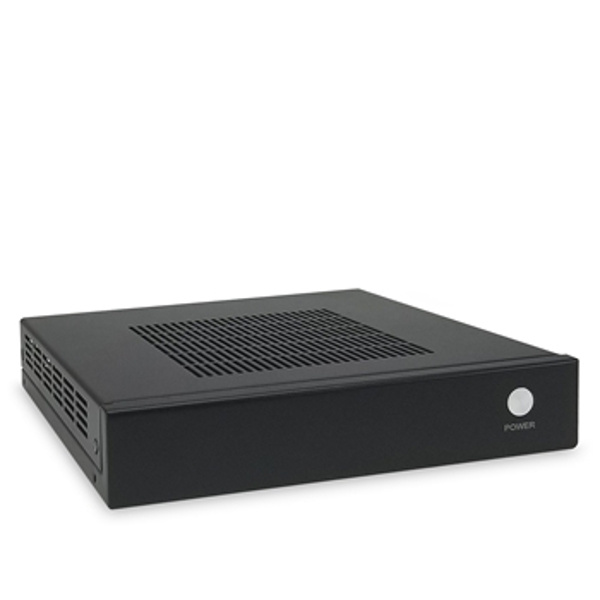

Chassis
• 138D Small Form Factor with aluminum panel, Convertible to 1U Rackmount • Dimensions: 7.00"(W) x 7.20"(D) x 1.38"(H), Weight: 3 lb. (Net) 10 lb. (gross with packaging) • Cooling: Slim CPU Fan with Heatsink • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available • Supports VESA, wall mount or rackmount brackets • Optional: Slim 10a Series 1.4" Slim • Optional: 100F Fanless 1.4" Slim
Power Supply
• Power: DC12V 5A 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
|
OS Support
• Windows 7, Windows 8x, Windows 10, IoT, Linux
• Windows 7 is not supported by Kaby Lake and Coffee Lake processor but Skylake only
Applications
• AI-IoT, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.
|
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
|
