Processor
• Intel ® Core™ Ultra Processors (Series 2) (LGA1851) • Intel ® Core™ Ultra 9-285, 7-265, 5-245/235/225 (65W) • Intel ® Core™ Ultra 9-285T, 7-265T, 5-245T/235T/225T (35W) • Supports Intel ® Hybrid Technology • Supports Intel ® Turbo Boost Max 3.0 Technology • Supports Intel ® Thermal Velocity Boost (TVB) • Supports Intel ® Adaptive Boost Technology (ABT) • Integrated NPU for dedicated AI acceleration
Chipset
• Intel® H810 Chipset
|
Memory
• 2 x DDR5 SO-DIMM • 4800MHz/5200MHz/5600Hz unbuffered non-ECC Dual Channel I/O • Supports up to 64GB (typical 64GB with 2 x 32GB DIMMs)
Graphics
• Intel® Xe LPG Graphics Architecture • 1 x HDMI® 2.1 port, max. resolution up to 4096x2160 at 60Hz • 1 x HDMI (Side way,optional)； • 1 x COM (optional VGA/DP)； • 1 x LVDS header
|
Network
• 1 x Realtek® RTL8111M 1 Gigabit (10/100/1000 Mb/s) LAN • Intel® 802.11ac Dual-Band (2.4/5.0 GHz) WiFi with Bluetooth by M.2 Module • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s SSD or PCIe 3.0 x4 NVMe)
|
Storage
• 2 x SATA 6Gb/s • 1 x M.2 2280 (for SATA-6Gb/s SSD or PCIe 3.0 x4 NVMe)
Audio
• Realtek® ALC897 Audio Codec (7.1) • 2 x 3.5mm Analog Stereo Audio jacks
|
Back Panel I/O
• 2 x USB 2.0 ports • 2 x USB 3.2 ports • 1 x HDMI® 2.1 port • 1 x COM/VGA/DP port • 1 x LAN port • 2 x 3.5mm Stereo Audio jacks • 1 x DC-In 2.5mm Power Connector
Internal I/O
• 2 x USB 2.0 header • 1 x LVDS header
|
System BIOS
• AMI® UEFI BIOS
|

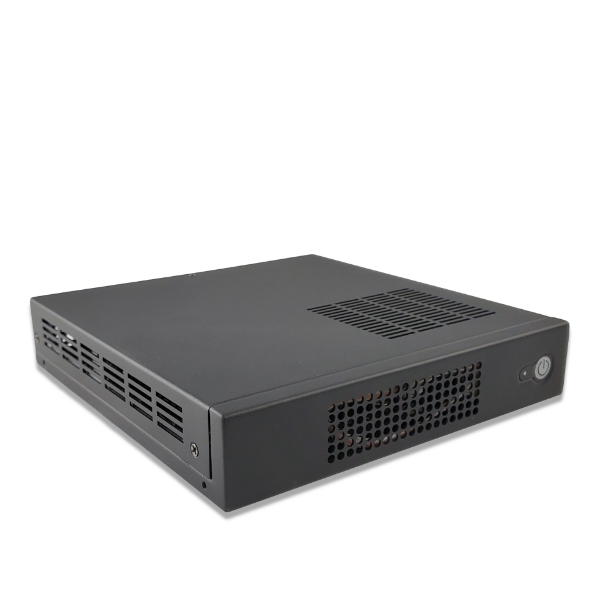

Chassis
• 140D Small Form Factor with aluminum panel, Convertible to 1U Rackmount • Dimensions: 7.00"(W) x 7.20"(D) x 1.40"(H), Weight: 3 lb. (Net) 10 lb. (gross with packaging) • Cooling: Slim CPU Fan with Heatsink • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available • Supports VESA, wall mount or rackmount brackets
Power Supply
• Power: DC19V Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
|
OS Support
• Windows 11 64-bit,
Applications
• Digital Signage, Entertainment PC, Edge AI, Audio/Video PC, AI-IoT, High-end Gaming, etc.
|
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
|
