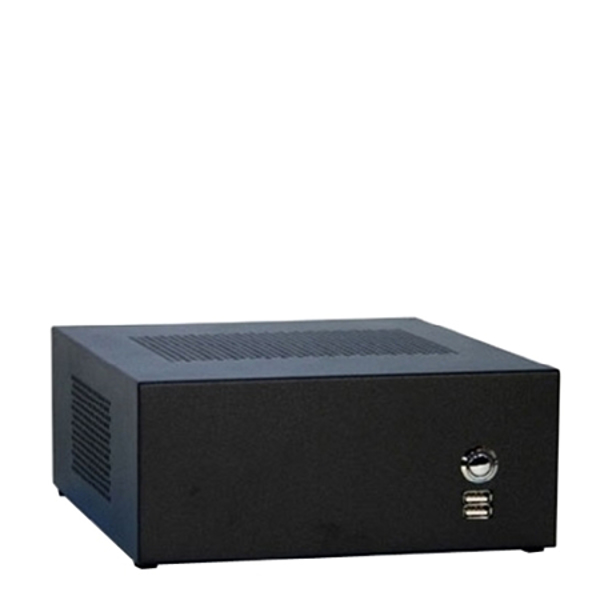

Mini Desktop with 2 LP Slots
Featured Highlights

Form Factor:
2 x 2.5" drive bay or front 2x2.5" Swap bay
Front LED Power Button
Front 2 USB 2.0 Port, Optional USB 3.0, SD-Reader
2 x Low Profile Slots
Mini-1U / FlexATX Power Supply AC 300-400W
2 x Rear 40x40mm System Fans
Option: Front.Top and Side Fans
Color: Black (Custom colors available with special order)
Material:  Sheet Metal Body, Front Aluminum Panel
Dimensions: 9.5"(W) x 8.1"(D) x 3.5"(H), Weight: 9 lb Net, 15 lb. Gross
Convertible to 2U Rackmount Case by adding 2U Rack Ear Bracket
SKU: 52A
Model Processor Chipset Memory Graphics Network M.2 MSata USB2.0 USB3.0 Ports Expansion OtherIO Audio
Q470L2G 11th/10th Socket 1200 Q470 2 DDR4SO Intel UHD 1 Intel\i219V+1 Intel\i211 2-8 2 4 H 4 R+2 F 1 DP+1 HDMI+1 HDMI2.0+1 eDP\LVDS/H+VGA header (co-lay with eDP) 1 MiniPCIe+1 PCIe 16x GPIO+TPM 5.1 ALC662
H310E2 8/9th Socket 1151 H310 2 DDR4 Intel UHD 630 1 Realtek\RTL8111H 2-8 4 4 R+1 H 2 R+1 H 1 DVI+1 HDMI+1 VGA PCIe 16x+PCIe 1x 1xPS/2+TPM 7.1 ALC887
