Think Big. Go Small. Eco-Smart Computing

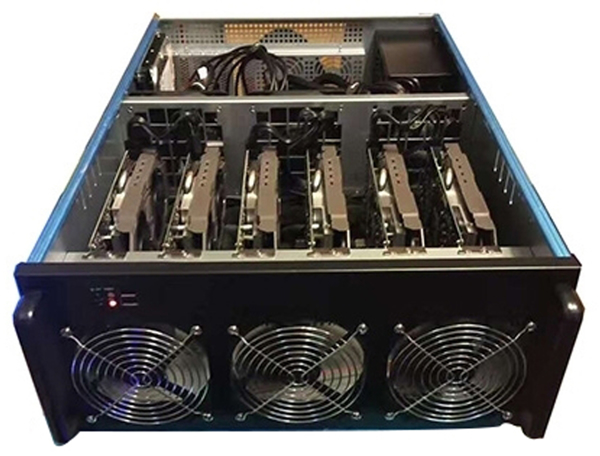

4006BM BitCoin Mining System

7,680-21,504 Core GPU, 6 x P106/P107/P108/X580, 4U Rackmount with 1300W P/S
Featured Highlights
6 x GPU Module with 7,680 to 21,504 Core GPU
Intel® B250 Express Chipset
  Intel® Core™ i7/i5/i3/Pentium® processor 1151pin
  7th Generation Kaby Lake Platform
1 x PCIe 16x
  5 x PCIe 1x (via PCIe 1x connector)
  6 x PCIe 1x (via PCIe/USB 3.0 connectors)
Intel® 620 Graphics HDMI+DP Dual 4K Displays
Supports up to 12 GPU Mining Cards
16GB DDR4 Memory, expandable to 32GB
1 x Intel® GigaLAN, 11ac WiFi
4 x SATA, M.2 SSD
4U Chassis 25.6" Depth
850W to 1300W Power supply
SKU: 4006BM
Product specifications
Processor
• Intel® 7th Generation Kaby Lake processor
• LGA1151 socket series with 35W to 91W TDP
• Intel® Core™ i7 processor 7700 series
• Intel® Core™ i5 processor 7500/7400 series
• Intel® Core™ i3 processor
• Intel® Pentium® processor
Chipset Intel® B250 Chipset
Memory
• 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
• Support for DDR4 2400/2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules(* To support 2400 MHz or XMP memory, you must install a 7th generation processor.)
Graphics
• Integrated Graphics Processor- Intel® HD Graphics support:
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz(* Support for DisplayPort 1.2 version.)
• 1 x HDMI® port, supporting a maximum resolution of 4096x2160@24 Hz(* Support for HDMI® 1.4 version.)
• 13 PCIe 1x expansion slots support up to 13 GPU Mining Cards of P106, P107, P108 or X580
Audio
• Realtek® ALC887 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• Support for S/PDIF Out,
• Realtek® ALC892 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out
LAN
• Intel® GbE LAN chip (10/100/1000 Mbit)
Expansion Slot
• 1 x PCIe 16x
• 5 x PCIe 1x (via PCIe 1x connector)
• 6 x PCIe 1x (via USB 3.0 connectors)
Storage
• 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors
Internal I/O
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x CPU fan header
• 2 x system fan headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.1 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x speaker header
• 1 x RGB (RGBW) LED strip extension cable header
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header
Back I/O
• 1 x PS/2 keyboard/mouse port
• 2 x SMA antenna connectors (2T2R)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
• 1 x USB 3.1 Gen 2 Type-A port (red)
• 4 x USB 3.1 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
BIOS

• 2 x 64 Mbit flash
• Use of licensed AMI® UEFI BIOS
• Support for DualBIOS™
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chassis
• 4U Rackmount with 850W or 1300W P/S
• 6 Double Size Slots for up to 6 GPU Card
• Dimension: 75" H x 17.2" W x 25.6" D Weight: 34 lb.
Form Factor
Form Factor
Back I/O
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 50,000 Hours
• RoHS Compliance
*
*
*
