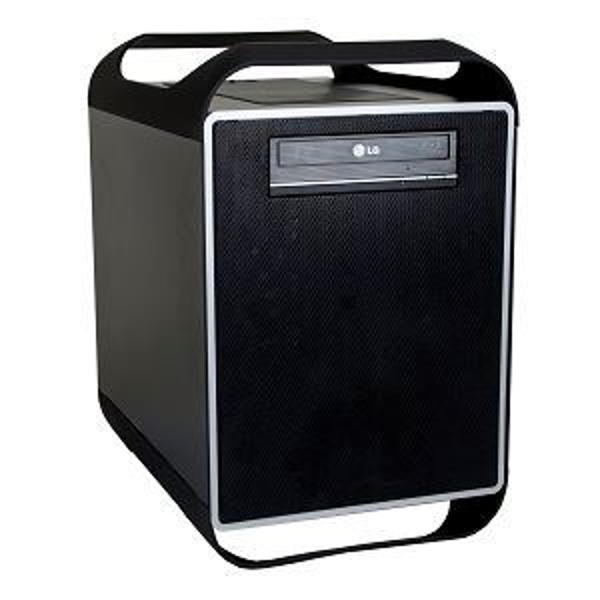

X9900x

5th Generation Intel® Core™ i7 processor, Dual LAN 3 PCIe 16x, 4-Channel DDR4 Memory, 10Gb/s M.2 SSD

Featured Highlights
•	Dimension: 9.8" (L) x 15.9" (D) x 14" (H) inch
•	5th Generation Intel® Core™ i7 or Xeon® Processor
•	Intel® X99 Chipset, Dual Gigabit Ethernet
•	Supports Nvidia® SLI™ and AMD® CrossFire X Graphics
•	Quad Channel DDR4 up to 64GB Memory
•	3 PCIe 16x Slots, M.2 for 10Gb/s SSD
•	10 x SATA-III 6Gb/s (RAID 0, 1, 5, 10)
•	4 USB 3.0 and 14 USB 2.0 Ports
•	Color: Black/White

Polywell is at it again when it comes to the performance and bandwidth that extreme gamers, digital media creators, and ultimate multitaskers need most. This MiniBox X9900x provides unmatched performance in production and editing, as well as digital media rendering and real-time audio/video preview capabilities in a small MiniBox with portability. The massive data throughput and support for the Intel® Core™ i7 processor Extreme Edition runs more applications simultaneously, with less wait time. SuperSpeed USB 3.0, SATA 6.0 Gb/s, and full support for ATI CrossfireX* and NVIDIA SLI* technology are just a few of the many features supported on this system.

SKU: X9900x

Specifications
BUILD YOUR CONFIGURATION
Request for Info

Product specifications

Motherboard • X9900x MicroATX Motherboard 9.6" x 9.6" • Back I/O Processor • Intel® Socket 2011 v3 for 5th Generation Core™ i7 Processor; • Intel® E5-2600 or E5-1600 Series Xeon™ Processor (2011 pin); • Supports Intel® Turbo Boost Technology 2.0; • Intel® Hyper-Threading Technology; • Integrated Memory Controller with support for up to 64 GB4 of system memory DDR4 SDRAM; • Intel® Fast Memory Access; • Supports Intel® 64 architecture
Chipset • Intel® X99 Memory • 4 x DIMM, Max. 64GB, DDR4 2166/1866MHz Non-ECC, Un-buffered Memory • Quad Channel Memory Architecture • Supports Intel® Extreme Memory Profile (XMP) • Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Multi-GPU Support • Supports NVIDIA® Quad-GPU SLI™ Technology • Supports AMD Quad-GPU CrossFireX™ Technology LAN • Intel® i218v Gigabit LAN Controller • Qualcomm® Atheros® AR8171 (PCIE x1 Gigabit LAN 10/100/1000 Mb/s) • Dual Gigabit LAN
Audio • Realtek® ALC1150 8-Channel High Definition Audio CODEC • Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking • Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound • Blu-ray audio layer Content Protection • Optical S/PDIF out port(s) at back panel Expansion Slot • 2 x PCIe 3.0/2.0 x16 • 1 x PCIe 3.0/2.0 x16 (4x mode) • 1 x Ultra M.2
USB • 6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board) • 8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board) Storage • 1 x Ultra M.2 10Gb/s for SSD • 10 x SATA 6Gb/s port(s) • Support Raid 0, 1, 5, 10 • 1 x eSATA 6Gb/s port • 1 x Thunderbolt Header
System BIOS • 64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS Manageability • WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Back I/O • 1 x PS/2 Mouse / keyboard Combo port • 1 x Clear CMOS Switch • 1 x eSATA 6Gb/s • 2 x LAN (RJ45) port • 4 x USB 3.0 • 4 x USB 2.0 • 1 x Optical S/PDIF out • 6 x Audio jack(s) Internal I/O • 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin) • 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) • 1 x TPM connector • 1 x Thunderbolt AIC Header • 1 x COM port connector • 10 x SATA 6Gb/s connector(s) • 1 x CPU Fan connector(s) (4 -pin) • 1 x CPU OPT Fan connector(s) (3 -pin) • 2 x Chassis Fan connector(s) • 1 x S/PDIF out header(s) • 1 x 24-pin EATX Power connector(s) • 1 x 8-pin ATX 12V Power connector(s) • 1 x Front panel audio connector(s) (AAFP) • 1 x System panel(s) (Q-Connector) • 1 x DirectKey Button(s) • 1 x DRCT header(s) • 1 x MemOK! button(s) • 1 x Clear CMOS jumper(s) • 1 x USB BIOS Flashback button(s)
OS Support • Windows 10 or 7 (32-bit or 64-bit) • Windows 10 or 7 Pro (32-bit or 64-bit) • Windows IoT / Embedded Linux / FreeBSD • Dual-boot Windows / Linux Chassis • <a href="http://www.polywell.com/us/TowerDeskPC/MiniBox-104.asp"><font color="#003399">MiniBox 104 mATX Tower</font></a> • Drive Bay: 1 External 5.25" Drive Bays • Cooling: Quiet and Cool 120mm Fans Cooling • Dimension: 14.13" (359 mm) D x15.91" (404 mm) H x9.84" (250 mm) W
Power Supply • 750W 80 Plus High Efficiency Active PFC (90V to 240V Power in Auto-Switch) • Quiet 140mm Cooling Fan, FCC, CE, CSA, UR Certified • Option: 550W, 650W, 850W, 900W, 1000W , 1250W or 1500W Available for Custom Configuration. Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
