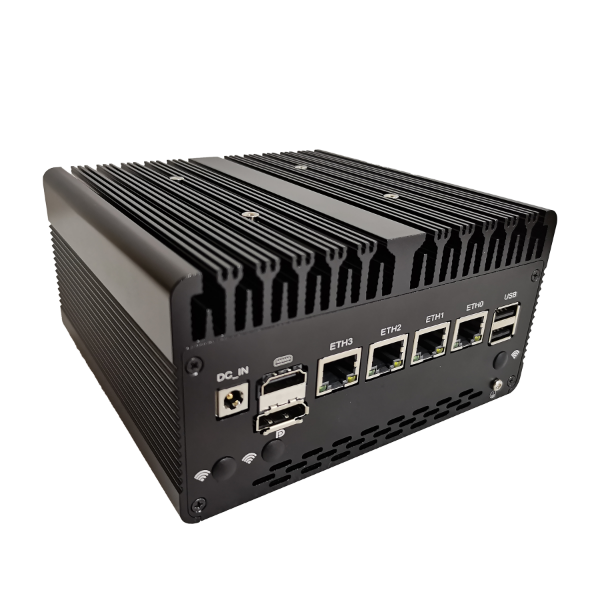

Picture of Nano-U13L4C

Picture of Nano-U13L4C

Picture of Nano-U13L4C

Picture of Nano-U13L4C

Picture of Nano-U13L4C

Picture of Nano-U13L4C

Nano-U13L4C

13th Gen. Raptor Lake-u/P/H-Series, 4 Intel® 2.5G LAN 8K Graphics DP+HDMI® 2.0 , 4 USB +Type-C

Featured Highlights
	Intel® 12/13^th Generation Core™ i7/i5/i3/Celeron®/Pentium® Processor
	Intel® Raptor Lake-u/P/H Platform (SOC)
	Intel® Iris® Xe / 13^th Gen UHD Graphics 4K Display, DP+ HDMI® 2.0+Thunderbolt 4.0
	2 DDR5 SO-DIMM for up to 64GB Memory
	SATA-6Gb/s, M.2 SSD/NVMe
	4 Intel® 2.5G LAN, M.2 WiFi/BT, 1 RJ45 Serial Console
	4 USB ports, Type-C USB 3.2 (Thunderbolt 4.0) ,SIM-slot
	DC12V/19V 60W Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11/10, IoT, Linux, FreeBSD
	Applications: AI-IoT, Network Appliance, Digital Signage, POS/Kiosk, IoT/Edge System, etc.

SKU: Nano-U13L4C

Specifications
Request for Info

Product specifications

Processor • 13th Generation Intel® Core™ Raptor Lake u/p series • Intel® Core™ i7-1360P 3.70/5.00Ghz 12Cores 16Threads 18M 28/64W • Intel® Core™ i7-1370P 3.50/4.80GHz 14Cores 20Threads 24M 28/64W • Intel® Core™ i7-1365U 3.90/5.20Ghz 10Cores 12Threads 12M 15/55W • Intel® Core™ i7-1355U 3.70/5.00GHz 10Cores 12Threads 12M 15/55W • Intel® Core™ i5-1350P 3.50/4.70GHz 12Cores 16Threads 12M 28/64W • Intel® Core™ i5-1340P 3.40/4.60GHz 12Cores 16Threads 12M 28/64W • Intel® Core™ i5-1345U 3.50/4.70GHz 10Cores 12Threads 12M 15/55W • Intel® Core™ i5-1335U 3.40/4.60GHz 10Cores 12Threads 12M 15/55W • Intel® Core™ i5-1334U 3.40/4.60GHz 10Cores 12Threads 12M 15/55W • Intel® Core™ i3-1315U 3.50/4.50GHz 6Cores 8Threads 12M 15/55W • Intel® Core™ i3-1305U 3.30/4.50GHz 5Cores 6Threads 10M 15/55W • Intel® Core™ i3-1315U 3.40/4.60GHz 6Cores 8Threads 10M 15/55W • Intel® Core™ i5-13500H 3.50/4.70GHz 12Cores 16Threads 18M 35/95W • Intel® Core™ i7-13700H 3.70/5.00GHz 14Cores 20Threads 24M 35/115W • Intel® Core™ i9-13900H 4.10/5.40GHz 14Cores 20Threads 24M 35/115W • Intel® Core™ U300 3.30/4.40GHz 5Cores 6Threads 24M 35/115W Option: • 12th/13th Gen. H-series Mobile Processor with extra PCIe Lanes (45W) • Intel® Core™ i7-13620H 3.6/4.9GHz 6P+4ECores 16T 24M 35/45W • Intel® Core™ i5-13420H 3.4/4.6GHz 4P+4ECores 12T 12M 35/45W • 12th Generation Intel® Core™ Alder Lake u/p series • Intel® Core™ i7-1260P, i7-1270P, i7-1265U, i7-1255U • Intel® Core™ i5-1250P, i5-1240P, i5-1245U, i5-1235U • Intel® Core™ i3-1215U, Pentium™ 8505, Celeron™ 7305 Chipset • Intel®Raptor Lake-u/p Platform (SOC)
Graphics • Intel® Iris® Xe or 12th Gen UHD Graphics • Supports Quad Displays with 8K Graphics • 1 x HDMI® 2.0, max. resolution up to 4096x2160 4K at 60Hz • 1 x DP 1.4, max. resolution up to 8K at 60Hz • 1 x Type-C (ThunderBolt4.0), supports DP 1.4 or HDMI® 2.1 Memory • 2 x DDR5 SO-DIMM • 5600/3200/2666MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 2 x Intel® I226v 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe 4.0 x4 NVMe) • 1 x M.2 3052 for 5G+SIM
Storage • 1 x SATA 6Gb/s • 1 x M.2 2280 (for SATA-6Gb/s or PCIe 4.0 x4 NVMe) Back Panel I/O • 2 x USB 2.0 ports • 1 x HDMI® 2.0 ports • 1 x DP 1.4 • 4 x LAN ports • 1 x DC-In 2.5mm Power Connector
Internal I/O • 1 x USB 2.0 header (for 2 x USB 2.0 ports) • 2 x Serial COM headers (RS232 + RS232/RS485) Other I/O • 2 x USB 3.0 ports (Front) • 1 x Type-C Thunderbolt 4.0 port (Front) • 1 x SIM slot (Front) • 1 x RJ45 Serial console(Front)
System BIOS • AMI® UEFI 128MBit / Legacy BIOS • Watchdog supported Chassis • Nano-F15 Fanless Chassis 7.6"(W) x 4.90"(D) x 2.1"(H) 2.75 lb. (net) 6 lb. (gross) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA, DIN, wall mount or rackmount brackets
Power Supply • Power: DC12/19V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11/10, IoT, Linux, FreeBSD
Applications • AI-IoT, Network Appliance, Digital Signage, POS/Kiosk, AI-IoT/Edge System, Client Computing, etc. Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
