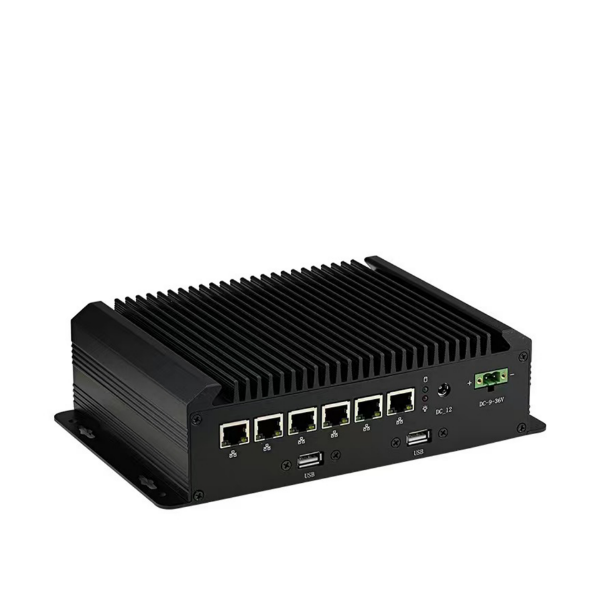

Picture of Nano-U12FL6

Picture of Nano-U12FL6

Picture of Nano-U12FL6

Picture of Nano-U12FL6

Picture of Nano-U12FL6

Nano-U12FL6

12th Gen, Iris GPU , HDMI , 6 x Intel 2.5G LAN + COM

Featured Highlights
	Intel® Core i5-1235U, 10 core 12 thread, 12M Cache, 1.30GHz up to 4.40GHz
	Intel® Alder Lake-u Platform (SOC)
	Intel® Gen UHD Graphics HDMI 2.0 Display
	1 x SO-DIMM Slots for Dual Channel Memory
	SATA-6Gb/s, Dual M.2-2280 SSD/NVMe PCIe x4, up to 3 Storage Devices
	6 x RJ45 Intel® i225V 2.5G Support WOL(Wake-on LAN), PXE Boot.
	4 x USB ports, 2 COM RS232/RS485
	ALC269-D0-VB6 Audio Codec (Chip)
	DC12V/19V 60-90W Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11/10, IoT, Linux, FreeBSD
	Applications: AI-IoT, Network Appliance, Digital Signage, POS/Kiosk, IoT/Edge System, etc.

In Stock

SKU: Nano-U12FL6

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i7-1265u 3.60/4.80GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i7-1255u 3.50/4.70GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1245u 3.30/4.40GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1235u 3.30/4.40GHz 2P+8ECores 12Threads 12M 15W • Intel® Core™ i3-1215u 3.30/4.40GHz 2P+4ECores 8Threads 10M 15W • Intel® Pentium® Gold 8505 3.30/4.40GHz 1P+4ECores 6Threads 8M 15W • Intel® Celeron® 7305 1.10GHz 1P+4ECores 5Threads 8M 12/15W Chipset • Intel® Alder Lake-u/p, Raptor Lake-up SoC
Graphics • Intel® 12th Gen UHD Graphics • 1 x HDMI® 2.0, max. resolution up to 4096x2160 4K at 60Hz Memory • 1 x DDR5 SO-DIMM • 5600MHz unbuffered non-ECC (Dual Channel I/O) max supprot 32GB
Network • 6 x Intel® I225v 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe 4.0 x4 NVMe)
Storage • 1 x SATA 6Gb/s • 1 x M.2-2280 also supports HDD/SSD Audio • 1 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 2 x USB 3.0 ports • 1 x HDMI® 2.0 ports • 2 x COM ports • 1 x DC-In 2.5mm Power Connector Internal I/O • 1 x USB 2.0 header (for 2 x USB 2.0 ports) • 2 x Serial COM headers (RS232 + RS232/RS485) • 1 x eDP header (for Panel Display)
Other I/O • 2 x USB 2.0 (Front) • 6 x 2.5G LAN (Front) System BIOS • AMI® UEFI 128MBit / Legacy BIOS • Watchdog supported
Chassis • Chassis 234mm(W) x 149mm(D) x 63.5mm(H) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA, DIN, wall mount or rackmount brackets Power Supply • Power: DC12/19V 60W-90W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European and other regional Power cords are available as options • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11/10, IoT, Linux, FreeBSD Applications • AI-IoT, Network Appliance, Digital Signage, POS/Kiosk, AI-IoT/Edge System, Client Computing, etc.
Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Core™ i7-1265u 3.60/4.80GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i7-1255u 3.50/4.70GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1245u 3.30/4.40GHz 2P+8ECores 12Threads 12M 12/15W • Intel® Core™ i5-1235u 3.30/4.40GHz 2P+8ECores 12Threads 12M 15W • Intel® Core™ i3-1215u 3.30/4.40GHz 2P+4ECores 8Threads 10M 15W • Intel® Pentium® Gold 8505 3.30/4.40GHz 1P+4ECores 6Threads 8M 15W • Intel® Celeron® 7305 1.10GHz 1P+4ECores 5Threads 8M 12/15W Chipset • Intel® Alder Lake-u/p, Raptor Lake-up SoC
Graphics • Intel® 12th Gen UHD Graphics • 1 x HDMI® 2.0, max. resolution up to 4096x2160 4K at 60Hz Memory • 1 x DDR5 SO-DIMM • 5600MHz unbuffered non-ECC (Dual Channel I/O) max supprot 32GB
Network • 6 x Intel® I225v 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe 4.0 x4 NVMe)
Storage • 1 x SATA 6Gb/s • 1 x M.2-2280 also supports HDD/SSD Audio • 1 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 2 x USB 3.0 ports • 1 x HDMI® 2.0 ports • 2 x COM ports • 1 x DC-In 2.5mm Power Connector Internal I/O • 1 x USB 2.0 header (for 2 x USB 2.0 ports) • 2 x Serial COM headers (RS232 + RS232/RS485) • 1 x eDP header (for Panel Display)
Other I/O • 2 x USB 2.0 (Front) • 6 x 2.5G LAN (Front) System BIOS • AMI® UEFI 128MBit / Legacy BIOS • Watchdog supported
Chassis • Chassis 234mm(W) x 149mm(D) x 63.5mm(H) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA, DIN, wall mount or rackmount brackets Power Supply • Power: DC12/19V 60W-90W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European and other regional Power cords are available as options • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11/10, IoT, Linux, FreeBSD Applications • AI-IoT, Network Appliance, Digital Signage, POS/Kiosk, AI-IoT/Edge System, Client Computing, etc.
Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
