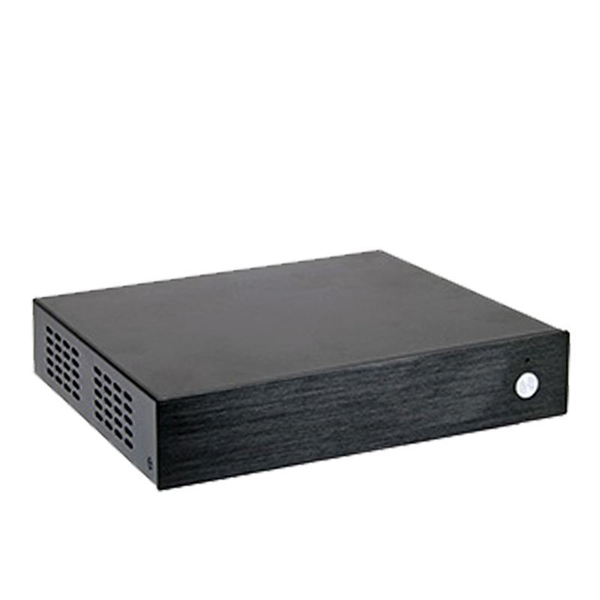

N3050C2

Intel® Celeron™ N3050, 1 HDMI+1 VGA, 2COM, 2 SATA, PCIe x1
Featured Highlights
Intel® Celeron™ N3050 Processor
Intel® Braswell Platform (SOC)
Intel® 8th Generation HD Graphics 4K@24Hz Resolution, 1 HDMI+1 VGA
2 x DDR3L SO-DIMM for up to 8GB Memory
PCIe x1
1 Realtek® Gigabit LAN
4 USB 3.0, 6 USB 2.0
2 x SATA
7.1 ALC887 Audio Sound
Power Supply: ATX input
OS Support: Windows 7 64-bit, Windows 8x, Windows 10 32-bit, Linux
Applications: POS/Kiosk, etc.

SKU: N3050C2
Product specifications
Processor
• Intel® Celeron® N3050 1.60/2.16GHz 2Core 2Threads 2M 6W
Chipset
• Intel® Braswell Platform (SOC)
Graphics
• Intel® 8th Generation HD Graphics 4K@24Hz Resolution
• Support 2 Graphics ports
• 1 x HDMI® Port
• 1 x VGA Port
Memory
• 2 x DDR3L SO-DIMM
• 1600/1333MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 8GB
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Optional WiFi via miniPCIe module
• Option: additional Gigabit or 10Gbit LAN can be added via PCIe slot or by USB LAN module
Expansion Slot
• 1 x PCI Express 3.0 x1 slot
Storage
• 2 x SATA 6Gb/s
Audio
• Realtek® ALC887 8-channel (7.1)
Back Panel I/O
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 1 x HDMI® port
• 1 x VGA port
• 1 x LAN port
• 2 x PS/2 Ports for Keyboard and Mouse
Internal I/O
• 2 x USB 3.0 Headers
• 4 x USB 2.0 Headers
• 2 x Serial COM Headers
• 1 x Parallel Port header
Chassis
• 400 Series Fanless Aluminum Chassis
• Dimensions:400 Case: 8.1(L)x8.1(W)x2.6(H) inch
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• Optional PCIe 1x RISER + MiniPCIe + mSATA slots + Slim DVD or Bluray optical drive
• System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging)
• Color: Black as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
• 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5"
• Optional: 175C Case 1.75" H 175F Fanless 1.75" H
• Optional: 300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with RISER Slot
• Optional: 500B 3.5" H w/LP Slot 500A DVD Bay +LP Slot 500R with RISER Slot 500S Swap Bay 2x2.5" 500D with 5.25" Bay
• Optional: 1750C Aluminum Form Factor
Power Supply
• 100-240V ATX AC Power connector input
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7 64-bit, Windows 8x, Windows 10 32-bit, Linux
Application
• POS/Kiosk, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
Product specifications
Processor
• Intel® Celeron® N3050 1.60/2.16GHz 2Core 2Threads 2M 6W
Chipset
• Intel® Braswell Platform (SOC)
Graphics
• Intel® 8th Generation HD Graphics 4K@24Hz Resolution
• Support 2 Graphics ports
• 1 x HDMI® Port
• 1 x VGA Port
Memory
• 2 x DDR3L SO-DIMM
• 1600/1333MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 8GB
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Optional WiFi via miniPCIe module
• Option: additional Gigabit or 10Gbit LAN can be added via PCIe slot or by USB LAN module
Expansion Slot
• 1 x PCI Express 3.0 x1 slot
Storage
• 2 x SATA 6Gb/s
Audio
• Realtek® ALC887 8-channel (7.1)
Back Panel I/O
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 1 x HDMI® port
• 1 x VGA port
• 1 x LAN port
• 2 x PS/2 Ports for Keyboard and Mouse
Internal I/O
• 2 x USB 3.0 Headers
• 4 x USB 2.0 Headers
• 2 x Serial COM Headers
• 1 x Parallel Port header
Chassis
• 400 Series Fanless Aluminum Chassis
• Dimensions:400 Case: 8.1(L)x8.1(W)x2.6(H) inch
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• Optional PCIe 1x RISER + MiniPCIe + mSATA slots + Slim DVD or Bluray optical drive
• System Weight: 3.9 lb(Net) and 6 lb(Gross with packaging)
• Color: Black as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
• 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5"
• Optional: 175C Case 1.75" H 175F Fanless 1.75" H
• Optional: 300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with RISER Slot
• Optional: 500B 3.5" H w/LP Slot 500A DVD Bay +LP Slot 500R with RISER Slot 500S Swap Bay 2x2.5" 500D with 5.25" Bay
• Optional: 1750C Aluminum Form Factor
Power Supply
• 100-240V ATX AC Power connector input
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7 64-bit, Windows 8x, Windows 10 32-bit, Linux
Application
• POS/Kiosk, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
