Small Form Factor Storage

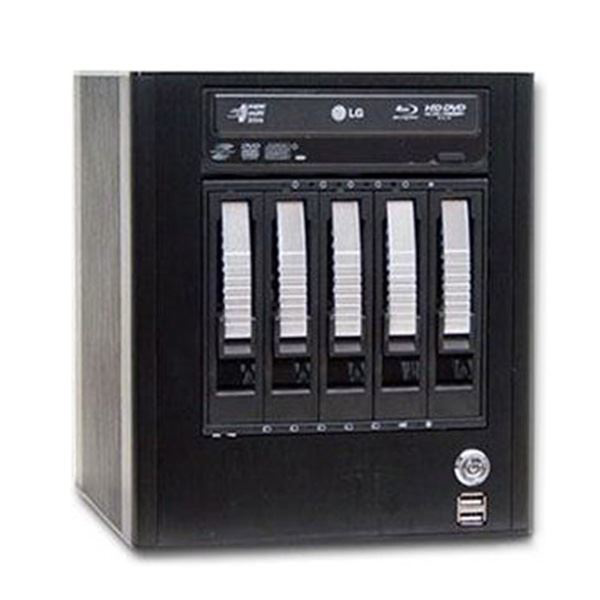

MiniStor 740N5B

Small and quiet, Energy Saving High Performance System, Affordable Price
Featured Highlights
Data file sharing among Wnidows, Linux OS, and Macintosh user, with user name, passowrd protection,
  and managed access in local workgroups.
The backup and recovery application provides system backup, remote boot and recovery for Windows clients.
Can act as a Dynamic Host Configuration Protocol (DHCP) server.
•  Can act as a DHCP client for easy network configuration.
Can be used as linear storage or set up as RAID 0, 1, 5, 6, 10, 50.
User-Friendly Web interface for setting up users and access rights.
Built-in FTP server provides convenient high-speed file transfers.

MiniStor 740N5B Series is an intelligent network storage solution for small office, medium office, and home network environments, costing less than Windows file servers.



SKU: MiniStor 740N5B
Product specifications
Processor

• Intel®1.8GHz 2-Core

Memory
• DDR3 4GB
• Optional: up to 8GB system memory
Flash
• 32GB with NAS and OS (Optional for MS HomeServer, MS Storage)
LAN
• 2x Gigabit LAN port
Network Service
• DHCP client/server (default is DHCP client/Static)
• Network Protocol: CIFS/SMB, NFS, FTP
• iSCSI (optional), can be configured as mix with NAS and iSCSI
Storage/RAID
• 5x 3.5" SATA Hard Drive 2.0TB, 3.0TB, 4.0TB, 5.0TB, 6.0TB or 8.0TB
• RAID 0, 1, 5, 6, 10, 50, with Hot Spare supported
USB
• 4x USB 2.0 connectors
Dimensions
• 205(W) x 206(H) x 205(D)mm
• 8.1(W) x 8.1(H) x 8.1(D)inch
Weight
• 8kg (17.6 lb)
System Power
• 150W DC Power
Software
• Operating System: Linux/FreeBSD, (Optional Microsoft Home Server)
• Backup and Recovery Client Support: Supports MS Windows 2000, Windows XP and Windows 2003, Linux and Mac
Operating Temperature
• From 5ºC to 45ºC (35ºF to 95ºF)
Non-Operating Temperature
• From -40ºC to 70ºC (-40ºF to 158ºF)
Non-Operating Humidity
• Up to 90% non-condensing humidity at 35°C (95ºF),
• CE/FCC
Management Interface
• Web GUI
• E-mail notification
• Rsync supported
Remote Boot Function
• Requires NIC with PXE support on client
File Sharing
• Authorizes users to access shared folder by passwords (by default there is one "Public" shared folder)
Access Control
• Allows users to access shared files for "Read Only" or "Read/Write"
*
*
*
