Small Form Factor Storage

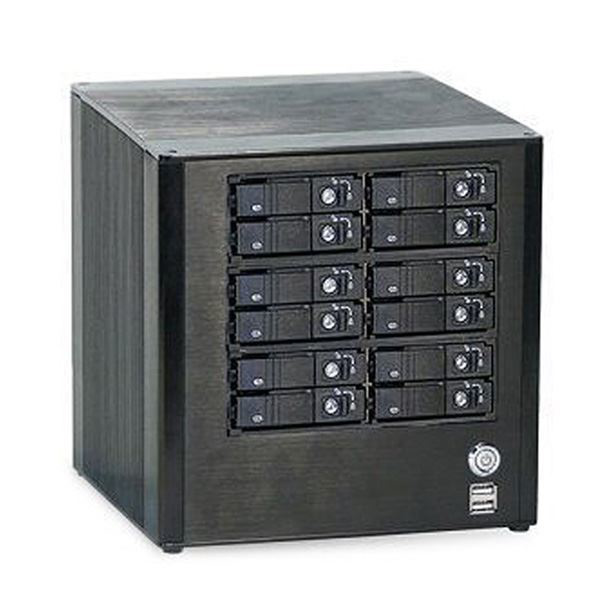

MiniStor 730D12

12 x 2.5 hot swap RAID-5/6 NAS/iSCSI Small and quiet, Energy Saving High Performance System, Affordable Price
Featured Highlights
•  Data file sharing among Wnidows, Linux OS, and Macintosh users, with user name, passowrd protection,
  and managed access in local workgroups.
The backup and recovery application provides system backup, remote boot and recovery for Windows clients.
Can act as a Dynamic Host Configuration Protocol (DHCP) server.
Can act as a DHCP client for easy network configuration
Can be used as linear storage or set up as RAID 0, 1, 5, 6, 10, 50.
User-Friendly Web interface for setting up users and access rights.
Built-in FTP server provides convenient high-speed file transfers.

MiniStor 730D12 is an intelligent network storage solution for small office, medium office, and home network environments, costing less than Windows file servers.



SKU: MiniStor 730D12
Product specifications
Processor

• Intel®2.4GHz 4-Core

Memory
• DDR3 4GB
OS and Storage Manager

• Linux/FreeBSD, (Optional Microsoft Home Server)

File System

• XFS, EXT3 standard
• Optional: ZFS, NTFS, or any file system supported by the x86 platform

Network I/O

• 2x Gigabit LAN port

Network Service
• DHCP client/server (default is DHCP client/Static)
• Network Protocol: CIFS/SMB, NFS, FTP
• iSCSI (optional), can be configured as mix with NAS and iSCSI
Management Interface

• Web GUI
• E-mail notification
• Rsync supported

Remote Boot Function

• Requires NIC with PXE support on client

File Sharing

• Authorizes users to access shared folder by passwords (by default there is one "Public" shared folder)

Access Control

• Allows users to access shared files for "Read Only" or "Read/Write"

Storage/RAID

• 12x 2.5" SATA-II/SATA-6G/s Hot-Swap Drive 1TB or 2.0TB
• RAID 5, 6, 10, 1 and 0 with Hot Spare supported
• 32GB with NAS and OS (Optional for MS HomeServer, MS Storage)

I/O Ports

• 4x USB 2.0 connectors

Client Support

• Supports MS Windows 2000, Windows XP and Windows 2003, Linux and Mac

Indicators

• Power, Status LEDs

Power Supply

• 150W DC power supply

Operating Temperature

• From 5ºC to 45ºC (35ºF to 95ºF)

Non-Operating Temperature

• From -40ºC to 70ºC (-40ºF to 158ºF)

Operating Humidity

• From 10% to 90% relative humidity

EMI Safety

• CE/FCC

Dimensions

• Dimensions: 205(W) x 206(H) x 205(D)mm
• 8.1"(W) x 8.1"(H) x 8.1"(D)
• Weight: 8kg (17.6 lb)

*
*
*
