 Think Big. Go Small. Eco-Smart Computing

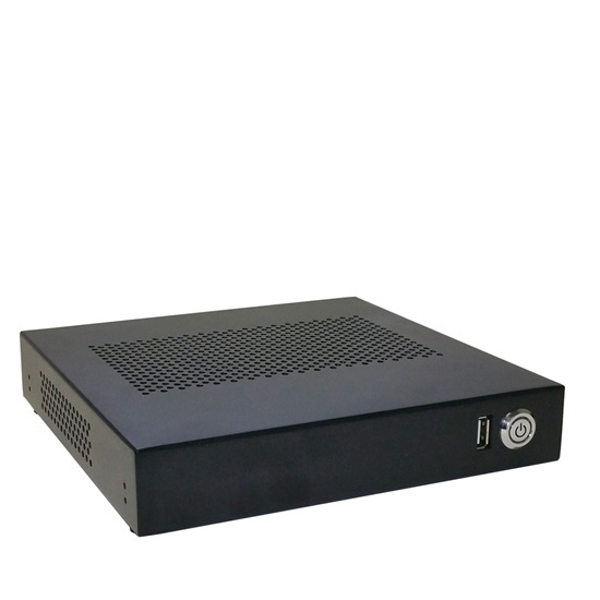

ION2

Intel® Atom™ D525, 1 HDMI+1 DVI, COM, 2 SATA
Featured Highlights
Intel® Atom™ D525 Processor
Intel® NM10 Express Chipset
Nvidia® GT218 Graphics 512MB VRAM, 1 HDMI+1 DVI
2 x DDR3 SO-DIMM for up to 4GB Memory
2 x MiniPCIe slots
1 Realtek® Gigabit LAN
4 USB 2.0
2 x SATA
5.1 ALC662 Audio Sound
Power Supply: DC12V input
OS Support: Windows XP, Windows 7 32-bit, Linux
Applications: Digital Signage, etc.

SKU: ION2
Product specifications
Processor
• Intel® Atom® D525 1.80GHz 2Core 4Threads 1M 13W
Chipset
• Intel® NM10 Express Chipset
Graphics
• Nvidia® GT218 Graphics 512MB VRAM
• Support 2 Graphics ports
• 1 x HDMI® Port
• 1 x DVI Port
Memory
• 2 x DDR3 SO-DIMM
• 1066/800MHz unbufferred non-ECC (Single Channel I/O)
• Supports up to 4GB
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Optional WiFi via miniPCIe module
• Option: additional Gigabit or 10Gbit LAN can be added via PCIe slot or by USB LAN module
Expansion Slot
• 2 x MiniPCIe sockets (supports WiFi+BT or mSATA)
Storage
• 2 x SATA 6Gb/s
• Optional mSATA -6G/s SSD storage
Audio
• Realtek® ALC662 6-channel (5.1)
• Support for S/PDIF Out
Back Panel I/O
• 2 x USB 2.0 Ports
• 1 x HDMI® port
• 1 x DVI port
• 1 x LAN port
• 1 x S/PDIF port
Internal I/O
• 2 x USB 2.0 Headers
• 1 x Serial COM Header
• 1 x LVDS
Chassis
• 10/100 Series Fanless Aluminum Chassis
• Dimensions:10 Case: 7.5(L) x 7.5(W) x 1.4(H) inch, 100 Case: 1.49(H) x 8(W) x 8(D) inch
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• System Weight: 2.5 lb(Net) and 4.5 lb(Gross with packaging)
• Color: Black as default color, custom colors available with special order
• Slim 10 Series 1.4" Slim 100F Fanless 1.4" Slim
• Optional: 175C Case 1.75" H 175F Fanless 1.75" H
• Optional: 300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with RISER Slot
• Optional: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5"
• Optional: 500B 3.5" H w/LP Slot 500A DVD Bay +LP Slot 500R with RISER Slot 500S Swap Bay 2x2.5" 500D with 5.25" Bay
• Optional: 1000 Aluminum Form Factor
Power Supply
• Power: DC12V Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows XP, Windows 7 32-bit, Linux
Application
• Digital Signage, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
