Think Big. Go Small. Eco-Smart Computing

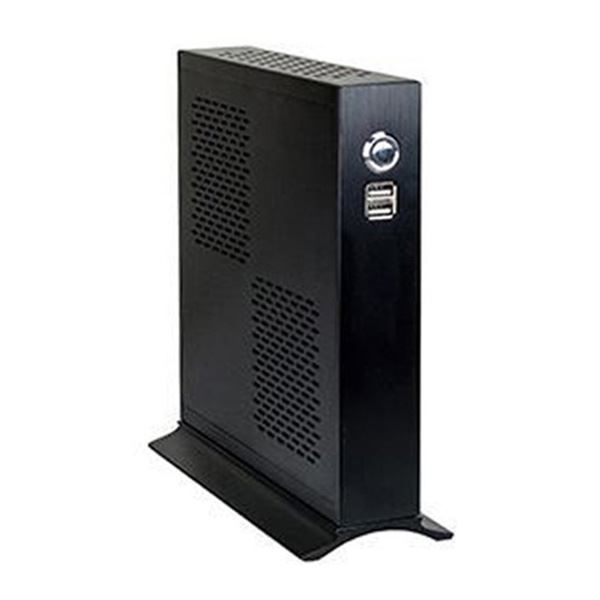

H9700A/i1000H9

5th Generation Intel® Core™™ i7/i5/i3, 1 HDMI, 2 SATA, 1 mSATA
Featured Highlights
Intel® Core™ i7/i5/i3 or Xeon E3 processor 1150pin
  5th Generation Broadwell Platform
Intel® H97 Chipset, Supports RAID-5, 8 PCIe 2.0
Intel® Iris Pro Graphics P580, 1 HDMI
2 x DDR3L SO-DIMM for up to 32GB Memory
1 x MiniPCIe slot
1 Realtek® Gigabit LAN
4 USB 3.0, 5 USB 2.0
2 x SATA -RAID, 1 x mSATA
5.1 ALC662 Audio Sound
Power Supply: DC19V input
OS Support: Windows 7 32-bit, Windows 7 64-bit, Windows 8x, Windows 10 32-bit, Windows 10 64-bit, Linux
Applications: Digital Signage, Surveillance, Media Player/IPTV, etc.

SKU: H9700A/i1000H9
Product specifications
Processor
• Intel® 5th Generation Broadwell processor
• LGA1150 socket series with 35W to 84W TDP
• Supports LGA1150 Xeon processor E3 series
• Option: Backward compatible to Intel® 4th Generation Haswell processor 1150pin
• Intel® Turbo Boost Technology
• Intel® Hyper-Threading Technology
• Support Intel® 64 architecture
Chipset
• Intel® H97 Express
• Supports SATA RAID-5
• 8 x PCIe 2.0 Lanes
Graphics
• Intel® Iris Pro Graphics P580
• Support 1 Graphics port
• 1 x HDMI® Port
Memory
• 2 x DDR3L SO-DIMM
• 1600/1333MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 32GB (however 16GB is most practical)
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Optional WiFi via miniPCIe module
• Option: additional Gigabit or 10Gbit LAN can be added via PCIe slot or by USB LAN module
Expansion Slot
• 1 x MiniPCIe socket (supports WiFi+BT or mSATA)
Storage
• 2 x SATA 6Gb/s supports RAID 0, 1, 5, 10
• 1 x mSATA 6Gb/s
Audio
• Realtek® ALC662 6-channel (5.1)
Back Panel I/O
• 4 x USB 3.0 Ports
• 1 x HDMI® port
• 1 x LAN port
• Optional RS-232 via USB to Serial module
Internal I/O
• 5 x USB 2.0 Headers
• 1 x LVDS
Chassis
• 200B Fanless Aluminum Chassis
• Dimensions:20 Case: 7.5(W)x7.5(D)x1.6(H) inch, 200 Case: 8.1(W )x 7.7(D) x 1.9(H) inch
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• Optional PCI + MiniPCIe slots
• System Weight: 2.5 lb(Net) and 4.5 lb(Gross with packaging)
• Color: Black as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
• Optional: 175C Case 1.75" H 175F Fanless 1.75" H
• Optional: 300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with RISER Slot
• Optional: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5"
• Optional: 500B 3.5" H w/LP Slot 500A DVD Bay +LP Slot 500R with RISER Slot 500S Swap Bay 2x2.5" 500D with 5.25" Bay
• Optional: 1000 Aluminum Form Factor
Power Supply
• Power: DC19V Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 7 32-bit, Windows 7 64-bit, Windows 8x, Windows 10 32-bit, Windows 10 64-bit, Linux
Application
• Digital Signage, Surveillance, Media Player/IPTV, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
