Think Big. Go Small. Eco-Smart Computing

H8100J

4th Gen. Intel Core i7/i5/i3
Featured Highlights
  Intel® Core™ i7/i5/i3 processor 1150pin
  4th Generation Haswell Platform
  Intel® H81 Chipset, Haswell Socket-1150
  Intel® HD 4600/5000 Series Graphics
  2 x DDR3 SO-DIMM for up to 32GB Memory
  2 x SATA-6Gb/s, mSATA
  MiniPCIe
  Gigabit LAN
  2 USB 3.0, 5 USB 2.0
  7.1 ALC887 Audio Sound
  DC12V 60W or higher wattage Power Adapter(UL/CE/FCC Certified)
  OS Support: Windows XP, Windows 7, Windows 8, Windows 10, IoT, Linux
  Applications: Set Top Box, Digital Signage, POS/Kiosk, Surveillance, AV Player, etc.

SKU: H8100J
Product specifications
Processor
• Intel® 4th Generation Haswell processor
• LGA1150 socket series with 35W to 84W TDP
Chipset
• Intel® H81 Express
• Supports 4th Gen Socket-1150 Processor
• 6 x PCIe 2.0 Lanes
Graphics

• Intel® HD 4600/5000 Series Graphics
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 4096x2160 Support for HDMI® 1.4 version and HDCP 2.2
• 1 x VGA Port

Memory
• 2 x DDR3 SO-DIMM
• 1600/1333MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 32GB
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x MiniPCIe full size slot for mSATA
Storage
• 2 x SATA 6Gb/s
• 1 x mSATA 6Gb/s
Audio
• Realtek® ALC887 8-channel (7.1)
• Support for S/PDIF Out
Back Panel I/O
• 2 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 1 x HDMI® port
• 1 x VGA port
• 1 x LAN port
• 1 x S/PDIF port
• 1 x DC-In 2.5mm Jack port
Internal I/O
• 3 x USB 2.0 Headers
• 1 x Serial COM Header
System BIOS
• Watchdog supported

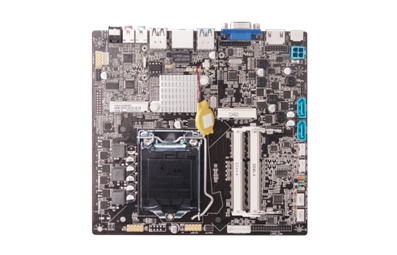

Systemboard
Small Form Factor
Back I/O

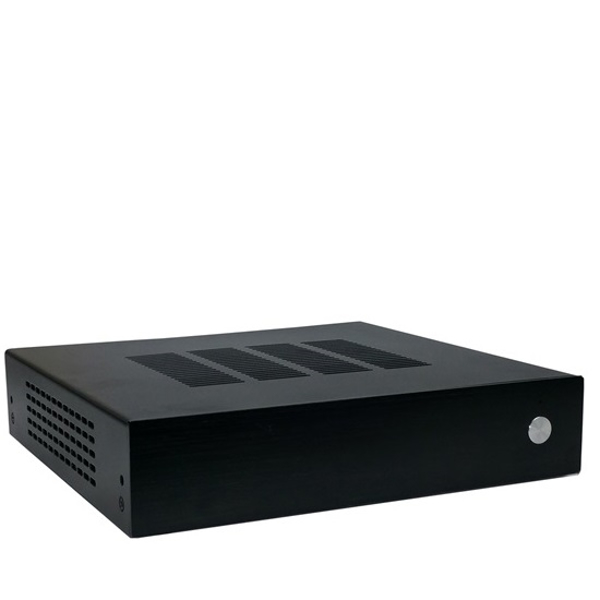

Chassis
• 175C Small Form Factor with aluminum panel, Convertible to 1U Rackmount
• Dimensions: 1.75(H) x 8.1(W) x 8(L) inch, Weight: 3 lb(Net) 10 lb(gross with packaging)
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• Cooling: Slim CPU Fan with Heatsink, Fanless option available with 300F Chassis
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets
• 175C Case 1.75" H 175F Fanless 1.75" H
• Option: 140D 7"x7"x1.4"
• Option: 1000 Aluminum Form Factor
• Option: 300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with RISER Slot
• Option: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5"
Power Supply
• Power: DC12V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) ••
• • Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows XP, Windows 7, Windows 8, Windows 10, IoT, Linux
Application
• Set Top Box, Digital Signage, POS/Kiosk, Surveillance, AV Player, etc.
Environment
• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
*
*
*
*
*
*
*
*
*
*
*
