 High-end Desktop

X670-E3

AMD Zen4 Ryzen™ Socket AM5, 3 PCIe 16x Slots, 3M.2 NVMe, ATX Tower
Featured Highlights
  AMD Zen 4 Ryzen™ Processor Socket AM5
  AMD X670 Chipset
  AMD RDNA™ Graphics, HDMI® 2.1 + DP 1.4
  4 DDR5 DIMM for up to 192GB Memory
  4 SATA-6Gb/s, 3 M.2 NVMe
  1 PCIe 5.0 slot, 3 PCIe 4.0 slots
  2.5GbE LAN, M.2 WiFi/BT
  7.1 ALC4082 Audio Sound
  7 USB 3.2, 4 USB 2.0, 1 Type-C
  Dimension: 21.6" (L) x 8.26"(W) x 20"(H)
    Color: Black/White
  OS Support: Windows 10/11
  Applications: Computing PC, Gaming, Digital Signage, IPTV, AV Player, High-End Gaming, etc.

SKU: X670-E3
Product specifications
Processor

• AMD Zen 4 Ryzen™ 8000 and 7000 Series Processor Socket AM5 LGA1718
• AMD Ryzen™ 9 7900X 12C/24T 4.70/5.30GHz 64M CPU 170W
• AMD Ryzen™ 9 7950X 16C/32T 4.50/5.70GHz 64M CPU 170W
• AMD Ryzen™ 7 7700X 8C/16T 4.50/5.40GHz 32M CPU 105W
• AMD Ryzen™ 5 7600X 6C/12T 4.70/5.30GHz 32M CPU 105W

Chipset

• AMD X670 Chipset

Graphics

• AMD RDNA™ 2 Integrated Graphics
• 1 x DisplayPort 1.4, supporting a max. resolution of 8K @60Hz
• 1 x HDMI® 2.1 , supporting a max. resolution of 4K @60Hz

Memory

• 4 x DDR5 DIMM
• 6600+(OC)/ 6400+(OC)/ 5800+(OC)/ 4800MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 128GB

Network

• 1 x Dragon RTL8125BG 2.5GbE (10/100/1000/2500 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x PCIe 5.0 x16 slot
• 2 x PCIe 4.0 x16 slot (PCIE3 supports x4 mode, PCIE4 supports x1 mode)
• 1 x PCIe 4.0 x1 slot
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x Blazing M.2 2280 (for PCIe Gen5x4 NVMe)
• 1 x Ultra M.2 2280 (for SATA-6Gb/s or PCIe Gen3x4 NVMe)
• 1 x Hyper M.2 2260/2280 (for PCIe Gen4x4 NVMe)
• 1 x M.2 2280 (for PCIe Gen4x2 NVMe)

Storage

• 4 x SATA 6Gb/s
• 1 x Blazing M.2 2280 (for PCIe Gen5x4 NVMe)
• 1 x Ultra M.2 2280 (for SATA-6Gb/s or PCIe Gen3x4 NVMe)
• 1 x Hyper M.2 2260/2280 (for PCIe Gen4x4 NVMe)
• 1 x M.2 2280 (for PCIe Gen4x2 NVMe)

Audio

• Realtek® ALC897 7.1 CH HD Audio Codec
• 3 x 3.5mm Audio jacks

Back Panel I/O

• 1 x Type-C USB 3.2 Gen2x2 port
• 1 x USB 3.2 Gen2 port
• 6 x USB 3.2 Gen1 ports
• 4 x USB 2.0 ports
• 1 x DisplayPort 1.4
• 1 x HDMI® 2.1 port
• 1 x LAN port
• 3 x 3.5mm Audio jacks

Internal I/O

•   2 x USB 2.0 headers (supports 4 x USB 2.0 ports)
•   2 x USB 3.2 Gen1 headers (supports 4 x USB 3.2 Gen1 ports)
•   1 x Thunderbolt™ AIC header
•   1 x Type-C USB 3.2 Gen2x2 header

Function

• 1 x SPI TPM header

System BIOS

• AMI® UEFI 256Mb BIOS with GUI support

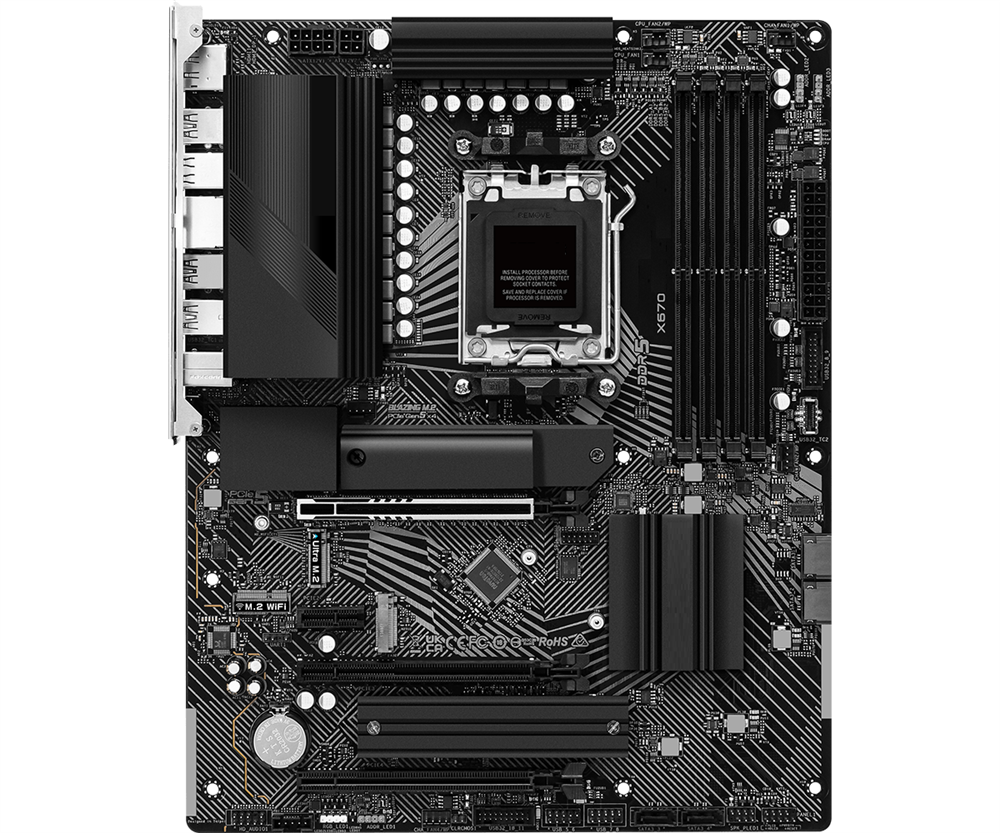

Systemboard

Small Form Factor

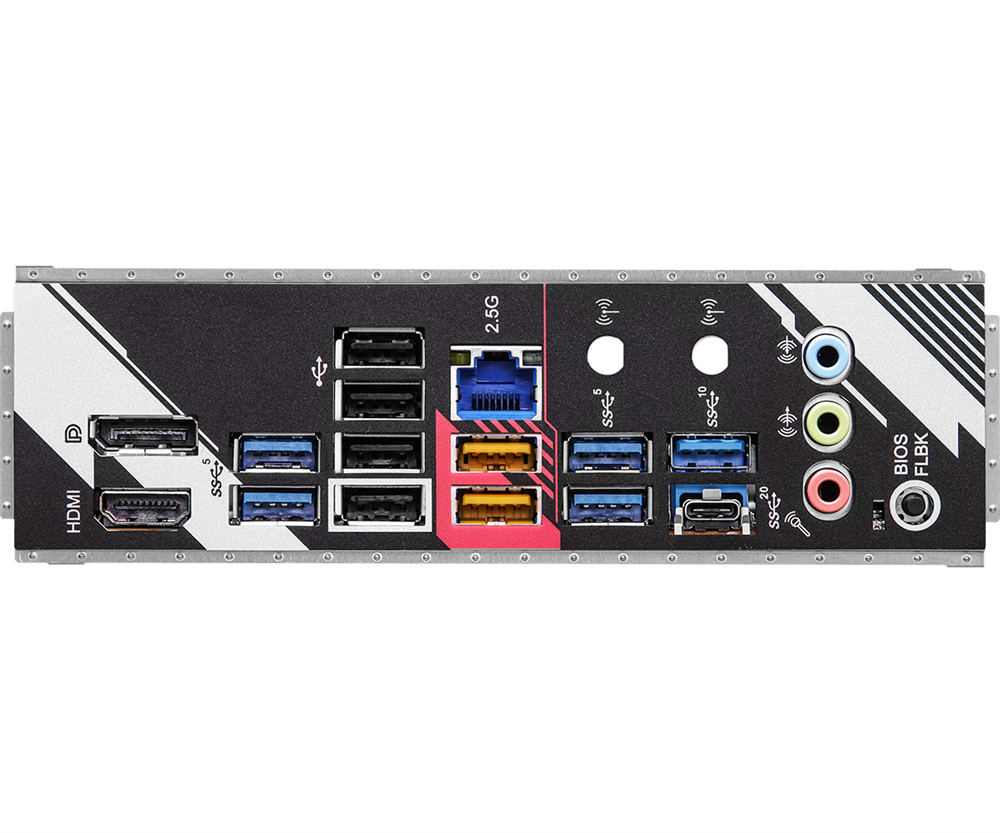

Back I/O

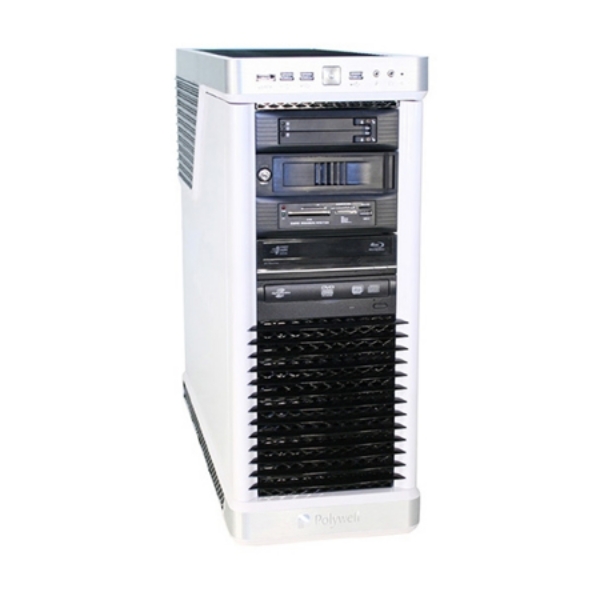

Chassis

• TS900W 9-Bay ATX Tower
• 9 external 5.25" with Easy Front Removable Tray
• 210 (W) x 510 (H) x 549 (D) mm, 8.26 (W) x 20 (H) x 21.6 (D) inch

Power Supply

• 750W 80 Plus high efficiency active PFC (90V to 240V power in auto-switch)
• Quiet 140mm cooling fan, FCC, CE, CSA, UR Certified
• Option: 550W, 650W, 850W, 900W, 1000W , 1250W or 1500W available for custom configuration.

OS Support

• Windows 11/10 64-bit

Application

• Set Top Box, Digital Signage, POS/Kiosk, Surveillance, IPTV, AV Player, High-End Gaming, etc.

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
